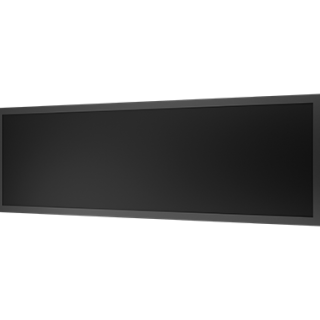

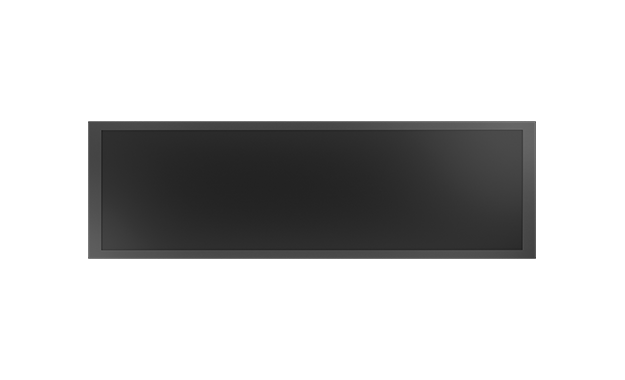

| Panel | Model | ADDP38NF01.0 |
|---|---|---|
| Resolution | 1920 x 538 | |
| Size | 38 inch | |
| Display Area | 919.296 (W) x 260.946 (H) mm | |
| Brightness | 800 nits | |
| Contrast | 4000 : 1 | |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |
| Response Time | 9.5 ms | |
| Color | 16.7 M | |
| Aspect Ratio | 16 : 4.5 | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Landscape | |
| Power | Consumption | 76 W |
| Input | AC/DC Adapter 100-240V~, 2A, 50/60Hz | |
| Standby | ≦ 1 W | |
| Environment | Operating Temp | 0 ~ 45 ℃ |
| Operating Humidity | 10 ~ 80% RH | |
| Storage Temp | -10 ~ 60 ℃ | |
| Storage Humidity | 20 ~ 80% RH | |
| Dimensions | Appearance | Black liquid coating |
| Net Weight | ~ 6.4 kg (Gross : ~10.2 kg) | |
| Body Size | 980.9 (W) x 303.2 (H) x 44.35 (D) mm | |
| Package Box | 115 (W) x 40 (H) x 18 (D) cm | |
| Other | Operation | Power, Source & Enter, Menu / Up / Down / Left / Right |
| Accessory | AC/DC Adapter 4Pin Din Type, Power Cord | |
| Speaker | N/A | |

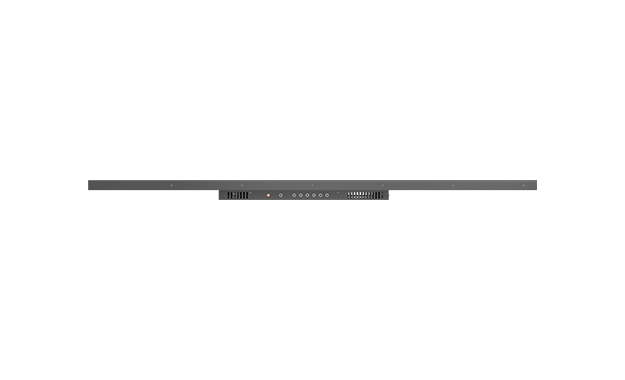

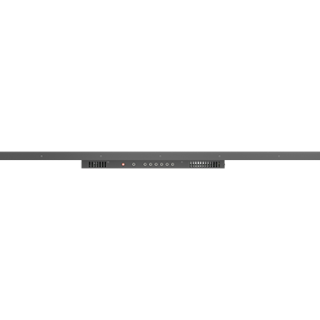

| I/O Ports | VGA*1, DVI-D*1, HDMI*1, Audio*1, RS232*1, DC12V(Output), DC IN | |

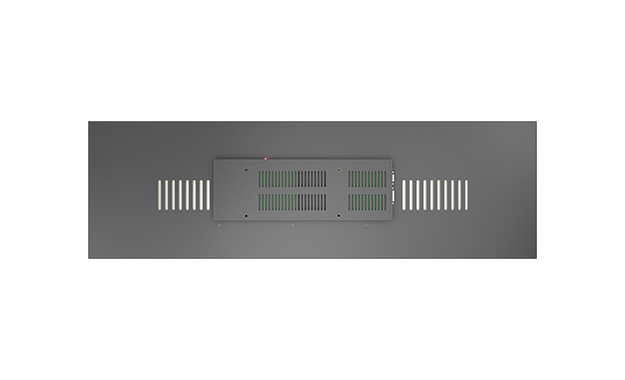

| Wall Mounting | VESA (200 x 100 mm, 4-M6 ) |
