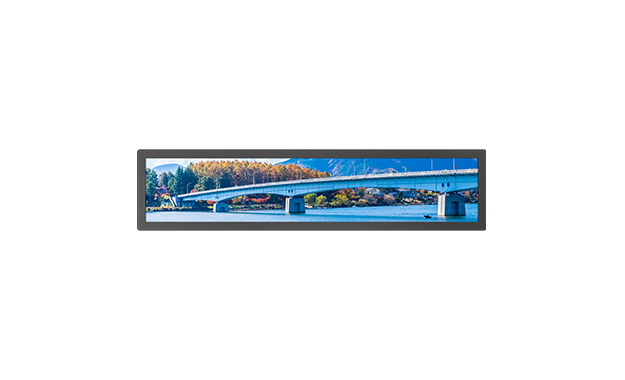

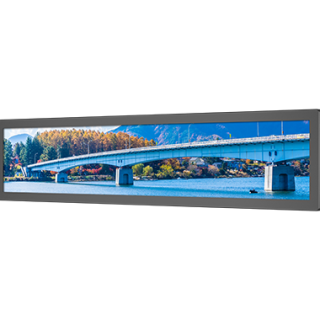

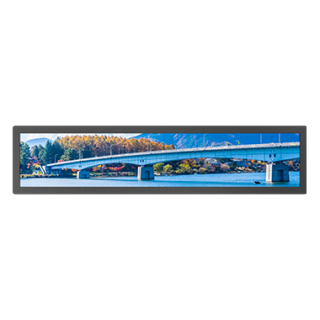

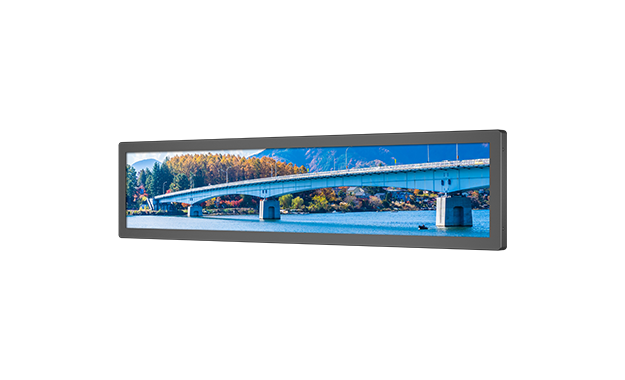

| Panel | Model | ADDP28NE02.0 |
|---|---|---|
| Resolution | 1920 x 360 | |
| Size | 28 inch | |
| Display Area | 698.4 (H) x 392.85 (V) mm | |
| Brightness | 700 nits | |
| Contrast | 1200 : 1 | |
| Viewing Angle | 89°/ 89°/ 89°/ 89° (L/R/U/D) | |
| Response Time | 8 ms | |
| Color | 16.7 M | |
| Aspect Ratio | 32 : 6 | |
| LED Backlight Lifetime | 30,000 Hrs | |
| Display Orientation | Landscape / Portrait | |
| Power | Consumption | DC 12V / 5A, < 60 W |
| Input | AC/DC Adapter 100-240V~, 2A, 50/60Hz | |
| Standby | N/A | |
| Environment | Operating Temp | 0 ~ 45 ℃ |
| Operating Humidity | 10 ~ 90% RH | |
| Storage Temp | -20 ~ 60 ℃ | |
| Storage Humidity | 20 ~ 80% RH | |
| Dimensions | Appearance | Black Powder Coating |
| Net Weight | ~ 4 kg (Gross : ~ 6 kg) | |

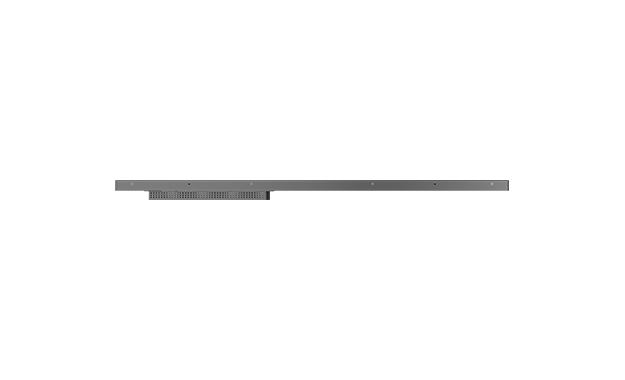

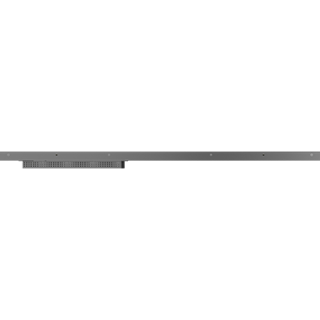

| Body Size | 738 (H) x 171 (V) x 38 (D) ±1.3 mm | |
| Package Box | 820 (W) x 250 (H) x 150 (D) mm | |
| Other | Operation | Keypad |
| Accessory | Power Cord (~1.2m)*1, AC/DC Adapter DC12V | |
| Speaker | N/A | |

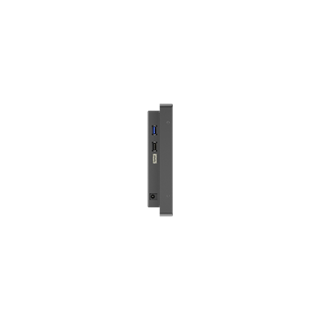

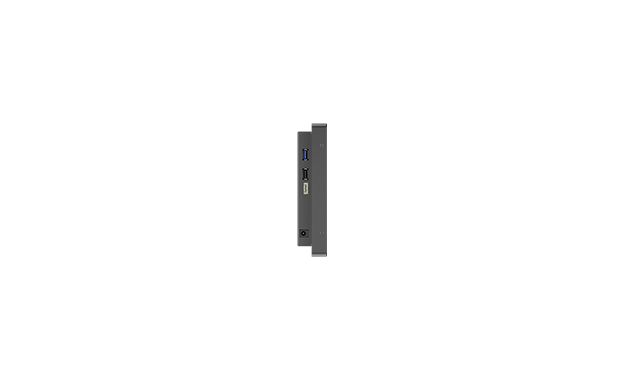

| I/O Ports | USB*2, HDMI*1, DC IN | |

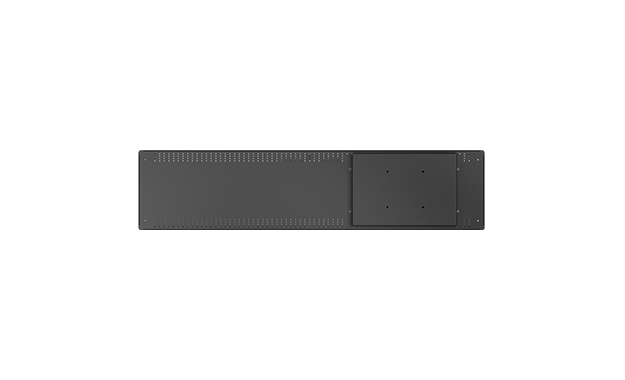

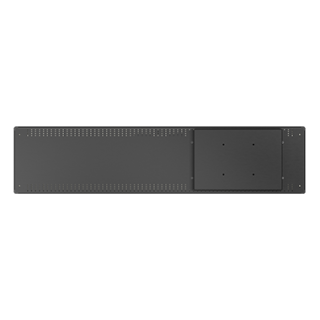

| Wall Mounting | VESA (75 x 75 mm, 4-M4) |
