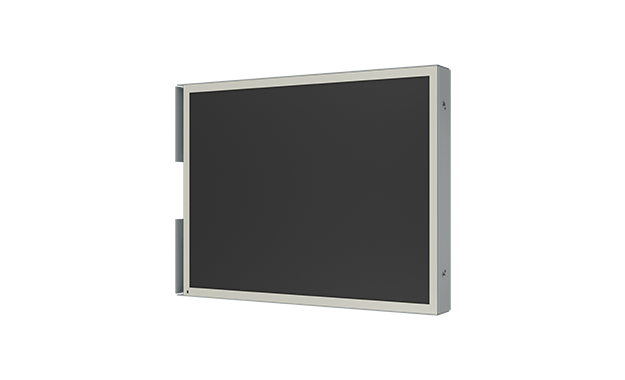

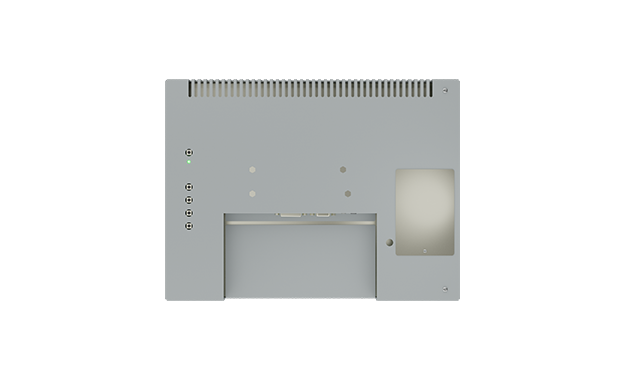

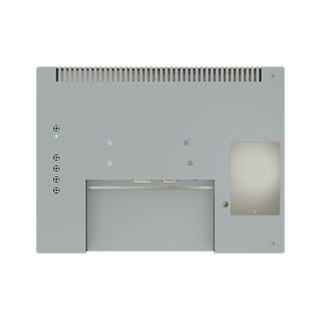

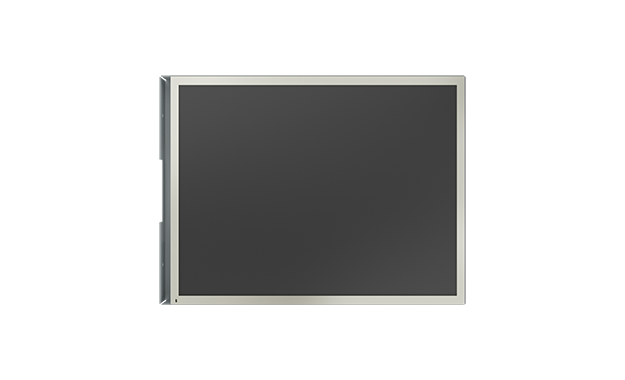

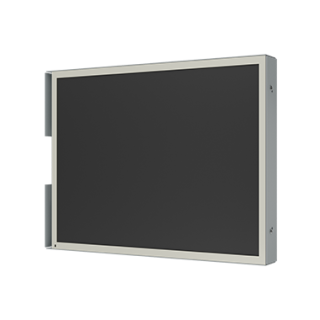

제품 모델：ADOF15NH02.1

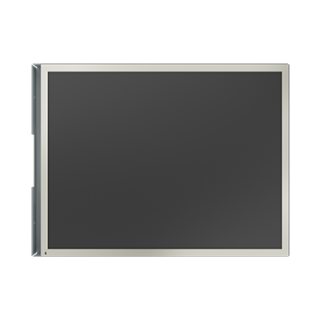

15” XGA Open Frame Display
- Size：15 inch
- Brightness：1600 nits
- Resolution：1024 x 768
- Contrast：800 : 1
- View Angle：89°/89°/89°/89° (L/R/U/D)
- Response Time：8 ms
- Color：16.2 M
- LED Backlight Lifetime：50,000 Hrs.

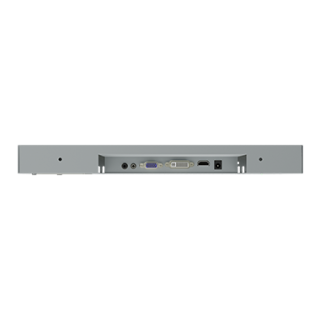

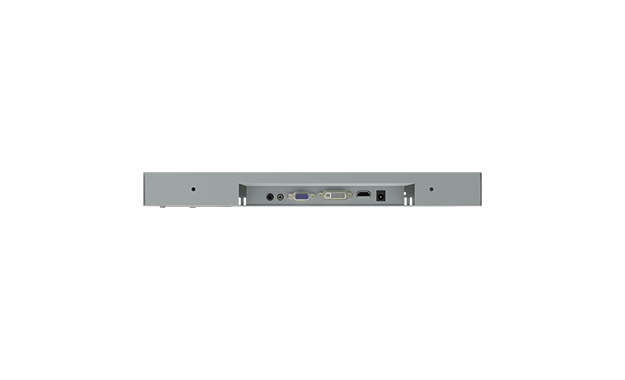

- I/O Ports：VGA*1, DVI-D*1, HDMI*1, DC IN, Audio, Earphone

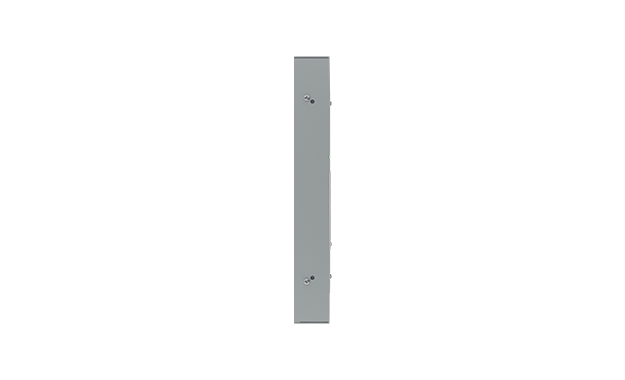

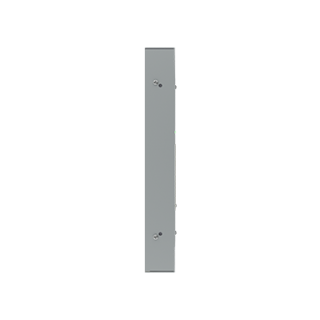

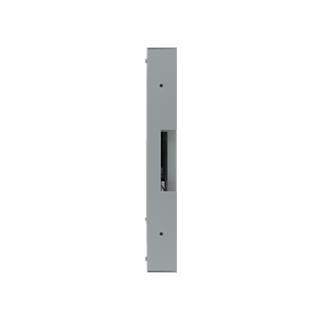

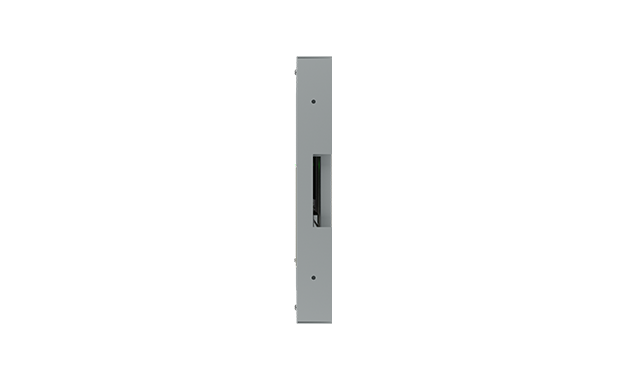

- Wall Mounting：Side Mount (4-M4)
| Panel | Model | ADOF15NH02.1 |
|---|---|---|
| Resolution | 1024 x 768 | |
| Size | 15 inch | |
| Display Area | 304.128 (H) x 228.096 (V) mm | |
| Brightness | 1600 nits | |
| Contrast | 800 : 1 | |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |
| Response Time | 8 ms | |
| Color | 16.2 M | |
| Aspect Ratio | 4 : 3 | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Portrait / Landscape | |
| Power | Consumption | < 20 W |
| Input | DC 12V, 3A (DC Jack, ψ2.0mm) | |
| Environment | Operating Temp | -20 ~ 60 ℃ |
| Operating Humidity | 8 ~ 90% RH | |
| Storage Temp | -30 ~ 70 ℃ | |
| Storage Humidity | 8 ~ 90% RH | |
| Dimensions | Body Size | 341 (H) x 256 (V) x 34 (D) mm |
| Package Size / Carton | 441 (H) x 436 (V) x 135 (D) mm | |
| Net Weight | ~ 2.5 kg | |
| Gross Weight | ~ 3.5 kg | |
| Other | Operation | Brightness, Contrast, Color, Auto Tuning, H/V Position, etc. |
| Accessory | N/A | |
| Speaker | N/A | |
| I/O Ports | VGA*1, DVI-D*1, HDMI*1, PC Audio*1, Earphone*1, DC IN | |
| Wall Mounting | Side Mount (4-M4) |
