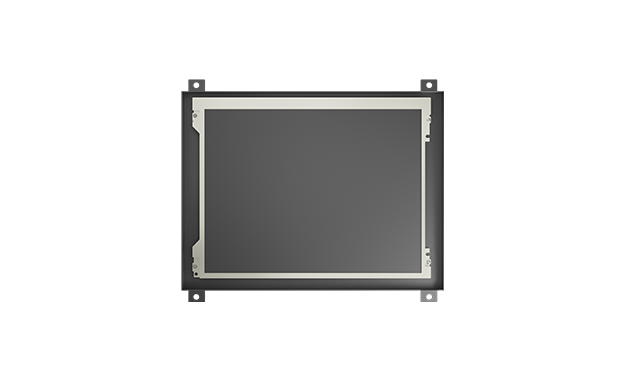

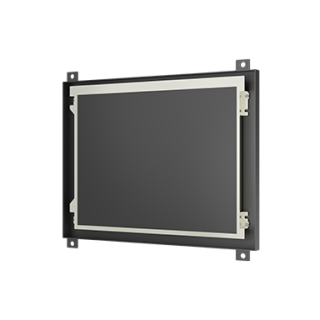

제품 모델：ADOF12NN01.0

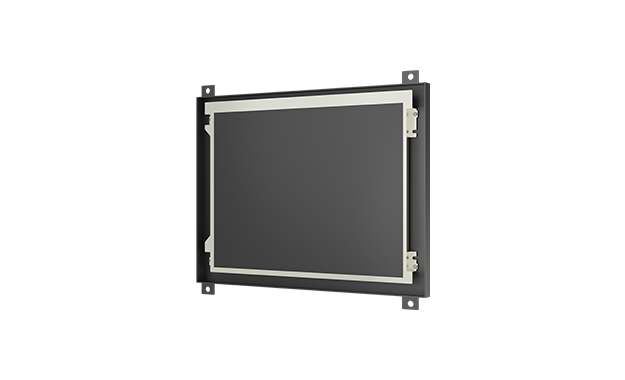

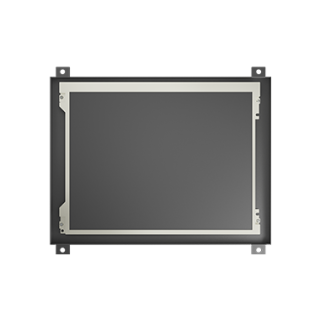

12.1” XGA Open Frame Display
- Size：12.1 inch
- Brightness：500 nits
- Resolution：1024 x 768
- Contrast：700 : 1
- View Angle：80°/80°/70°/70° (L/R/U/D)
- Response Time：35 ms
- Color：16.7 M
- LED Backlight Lifetime：50,000 Hrs.

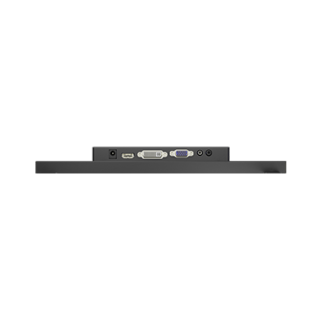

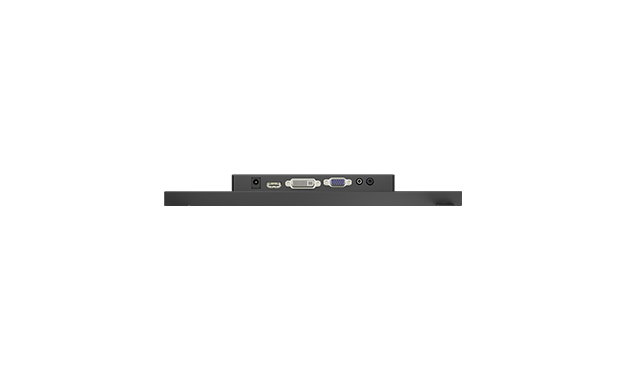

- I/O Ports：VGA*1, DVI-D*1, HDMI*1, DC IN, Audio, Earphone
- Wall Mounting：Side Mount (4-M4)
| Panel | Model | ADOF12NN01.0 |
|---|---|---|
| Resolution | 1024 x 768 | |
| Size | 12.1 inch | |
| Display Area | 245.76 (H) x 184.32 (V) mm | |
| Brightness | 500 nits | |
| Contrast | 700 : 1 | |
| Viewing Angle | 80°/80°/70°/70° (L/R/U/D) | |
| Response Time | 35 ms | |
| Color | 16.7 M | |
| Aspect Ratio | 4 : 3 | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Portrait / Landscape | |
| Power | Consumption | < 15 W |
| Input | DC 12V, 2.5A (DC Jack, ψ2.0mm) | |
| Environment | Operating Temp | 0 ~ 50 ℃ |
| Operating Humidity | 8 ~ 90% RH | |
| Storage Temp | -10 ~ 60 ℃ | |
| Storage Humidity | 8 ~ 90% RH | |

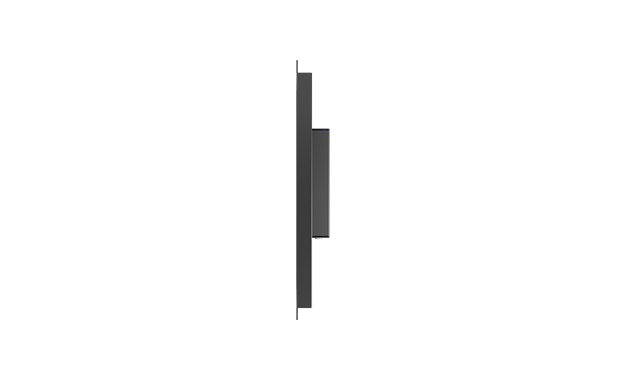

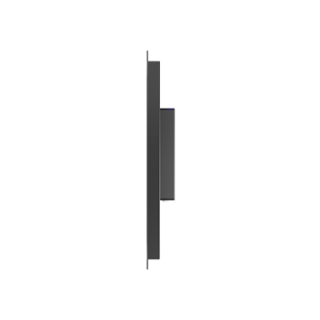

| Dimensions | Body Size | 303 (H) x 230 (V) x 38 (D) mm |
| Package Size / Carton | 441 (H) x 436 (V) x 135 (D) mm | |
| Net Weight | ~ 2.5 kg | |
| Gross Weight | ~ 3.5 kg | |

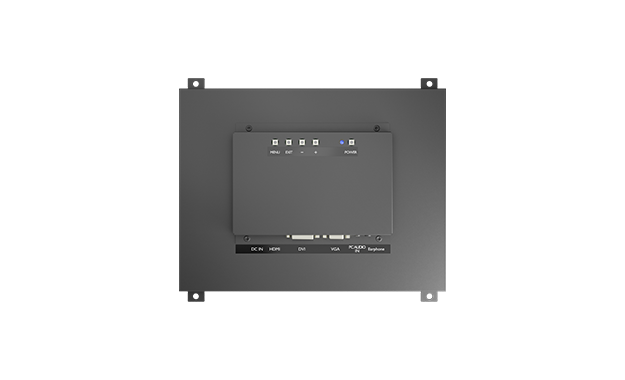

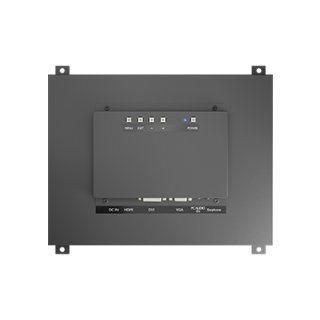

| Other | Operation | Power, Menu, Exit, Vol-, Vol+ |
| Accessory | VGA cable, AC/DC Adapter, Power Cord | |
| Speaker | N/A | |
| I/O Ports | VGA*1, DVI-D*1, HDMI*1, PC Audio*1, Earphone*1, DC IN | |
| Wall Mounting | Side Mount (4-M4) |
