제품 모델:ADDP32NN02.0

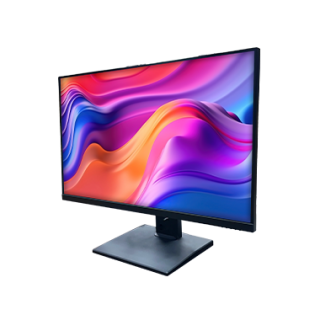

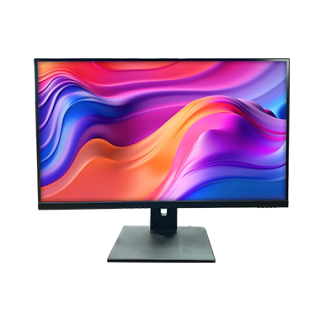

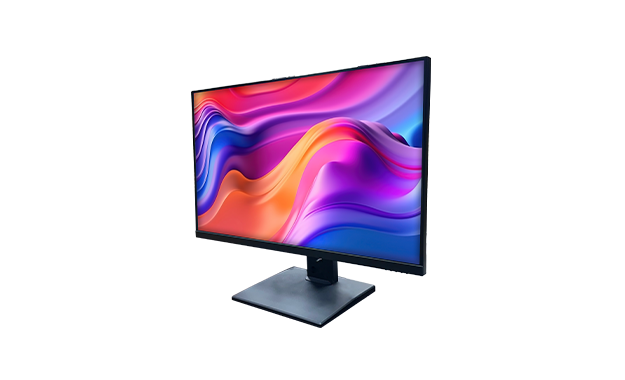

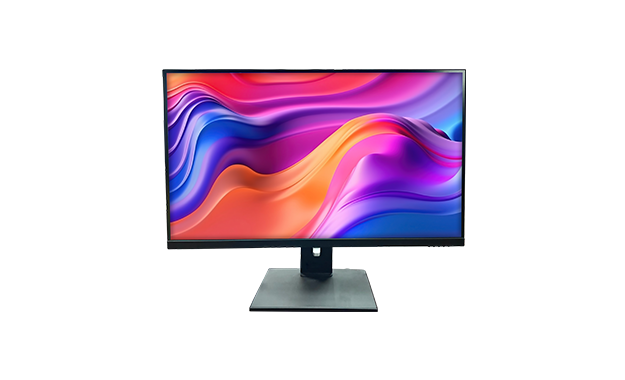

32” UHD 12G-SDI Display

  • Brightness:600 nits
  • Resolution:3840 x 2160
  • Response Time:12 ms
비교항목 추가 문의 하기
Panel Model ADDP32NN02.0
Resolution 3840 x 2160
Size 32 inch
Display Area 708.48 (H) x 398.52 (V) mm
Brightness 600 nits
Contrast 1000 : 1
Viewing Angle 89°/89°/89°/89° (L/R/U/D)
Response Time 12 ms
Color 16.7M
Aspect Ratio 16 : 9
V Frequency N/A
Frequency N/A
Pixel Pitch N/A
Power Consumption DC 24V / 5A, < 90 W
Type AC/DC Adapter 100-240V~, 2A, 50/60Hz, (4pin DIN Type, Push Lock)
Standby < 0.5 W
Color Design Front Bezel N/A
Back Cabinet N/A
Dimensions Body Size (With stand) 726.5 (H) x 430.6 (V) x 55.9 (D) ±1.3 mm / 726.5 (H) x 617.7 (V) x 270.2 (Depth) ±1.3 mm (with stand)
Package Box 81 (W) x 55 (H) x 19 (D) cm
Net Weight ~ 8.5 kg
Gross Weight ~10 kg
Loading Q'ty (With pallet) 20" N/A
40" N/A
Other Operation Keypad
Accessory Power Cord (~1.2m)*1, AC/DC Adapter DC24V
Interface HDMI*1, Earphone*1, 12G-SDI-in*1, 12G-SDI-loopout*1, DC IN
Speaker N/A
VESA Pivot stand / VESA (100 x 100 mm, 4-M6)
Special Feature N/A
Regulation N/A
