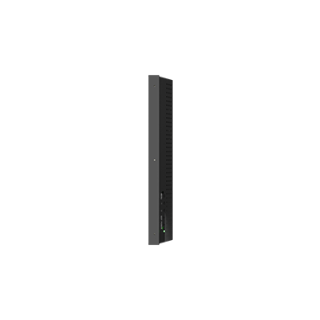

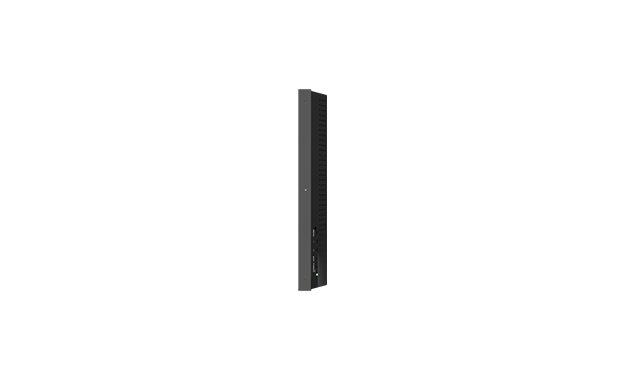

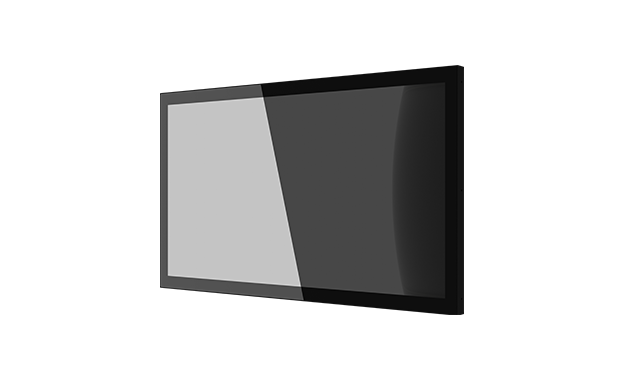

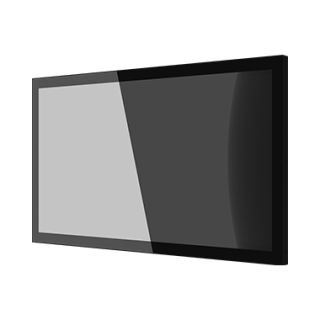

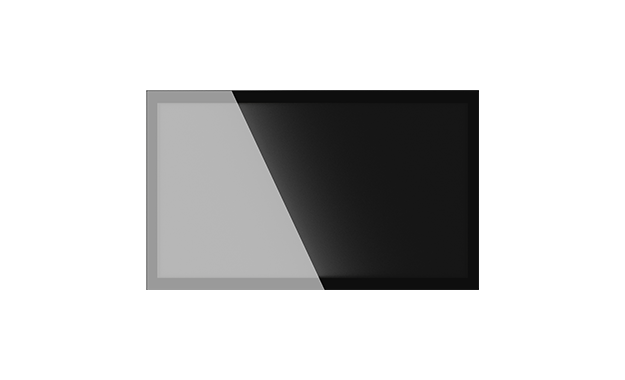

型番：ADTD21PH02.0
21.5” High Brightness Touch Display
- Size：21.5 inch
- Touch Type：PCAP (10 Points)
- Brightness：1500 nits (w/ touch:1275)
- Resolution：1920 x 1080
- Contrast：5000 : 1
- Viewing Angle：89°/89°/89°/89° (L/R/U/D)
- Response Time：16 ms
- Color：16.7 M
- LED Backlight Lifetime：30,000 Hrs.
- I/O Ports：VGA*1, DVI*1, HDMI*1, Audio in*1, USB-A (w-TP)
| Panel | Model | ADTD21PH02.0 |
|---|---|---|
| Resolution | 1920 x 1080 | |
| Size | 21.5 inch | |
| Display Area | 476.64 (H) x 268.11 (V) mm | |
| Brightness | 1500 nits (w/ touch:1275) | |
| Contrast | 5000 : 1 | |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |
| Response Time | 16 ms | |
| Color | 16.7 M | |
| LED Backlight Lifetime | 30,000 Hrs. | |
| Display Orientation | Portrait | |
| Touch Panel | Touch Type | N/A |
| Structure | G/G Type | |
| Controller IC | N/A | |
| Interface | N/A | |
| Multi-touch | 10 Points | |
| Transmission Rate | ≥ 85% | |
| Bonding | Air Bonding | |
| Surface Hardness | ≧ 6 H | |
| Power | Consumption | < 58 Watt |
| Input | DC 12V, 6.67A | |
| Environment | Operating Temp | 0 ~ 50 ℃ |
| Operating Humidity | 5 ~ 90% RH | |
| Storage Temp | -20 ~ 60 ℃ | |
| Storage Humidity | 5 ~ 90% RH | |
| Dimensions | Body Size | 512.2 (H) x 309.2 (V) x 42 (D) mm |
| Package Size / Carton | 450 (H) x 640 (V) x 160 (D) mm | |
| Net Weight | ~ 5.1 kg | |
| Gross Weight | ~ 6.2 kg | |
| Other | Operation | Brightness, Contrast, Color, Auto Tuning, H/V Position, etc. |
| Accessory | Adapter (DC12V / 6.67A), Power Cord*1 | |
| Speaker | N/A (Optional) | |

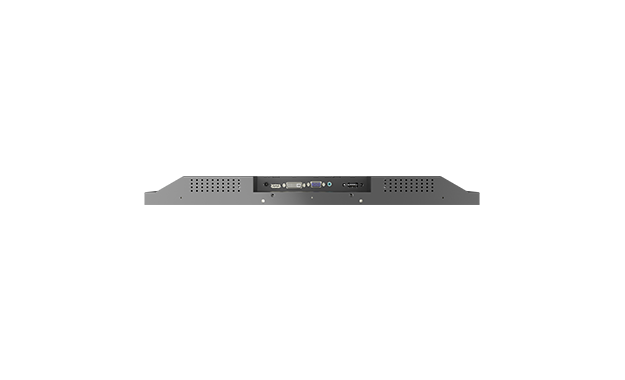

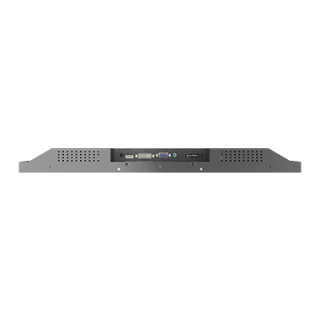

| I/O Ports | VGA*1, DVI*1, HDMI*1, Audio in*1, USB-A (w-TP), DC Power Input | |

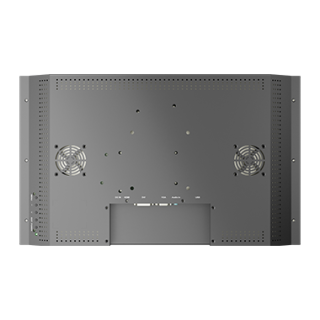

| Wall Mounting | VESA Mount (100 x 100mm, M4*6L) |
