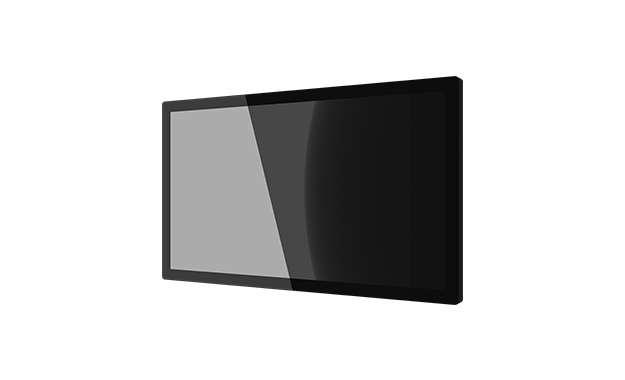

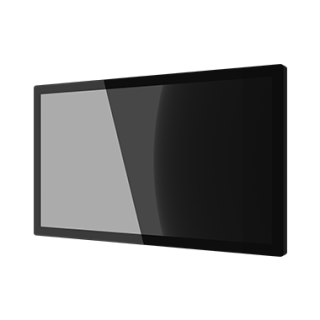

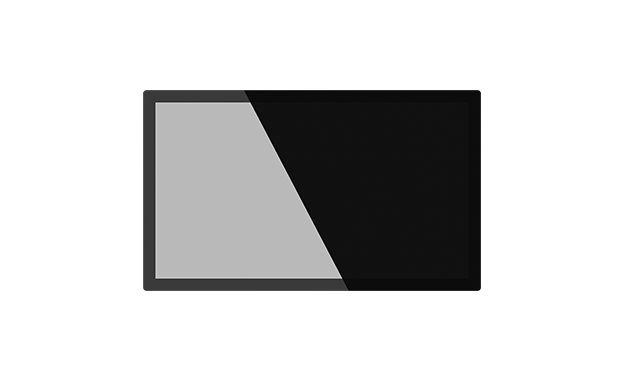

型番：ADSD43PN01.0
43” PCAP Smart Touch Display
- Size：42.5 inch
- Equipped Intel Core i plateform
- WLAN/LAN：WIFI, 2 x GbE LAN
- Brightness：440 nits
- Resolution：1920 x 1080
- Contrast：4000 : 1
- View Angle：89°/89°/89°/89° (L/R/U/D)
- Color：16.7 M
- LED Backlight Lifetime：50,000 Hrs.
- I/O Ports：VGA*1, DVI-D*1, HDMI*1, Audio*1, AC IN
| Panel | Model | ADSD43PN01.0 |
|---|---|---|
| Resolution | 1920 x 1080 | |
| Size | 42.5 inch | |
| Display Area | 940.896 (H) x 529.254 (V) mm | |
| Brightness | 440 nits | |
| Contrast | 4000 : 1 | |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |
| Response Time | 8 ms | |
| Color | 16.7 M | |
| Aspect Ratio | 16 : 9 | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Landscape / Portrait | |
| Touch Panel | Touch Type | Projected Capacitive Touch |
| Structure | GFF or GG (~3 mm CG) | |
| Controller IC | EETI | |
| Interface | USB | |
| Multi-touch | 10 Points | |
| Transmission Rate | 88% | |
| Surface Hardness | 7 H | |
| System | Operating System | N/A |
| CPU | Intel® Core™ i3-8145UE | |
| RAM | 8G DDR4 | |
| ROM | 128G | |
| Network | Wi-Fi, 2 x GbE LAN | |
| Power | Consumption | < 150 W |
| Input | AC100 - 240V, 50/60Hz | |
| Environment | Operating Temp | 0 ~ 50 ℃ |
| Operating Humidity | 10 ~ 90% RH | |
| Storage Temp | -20 ~ 60 ℃ | |
| Storage Humidity | 10 ~ 90% RH | |
| Dimensions | Panel Cover | PCAP Touch (Thickness : 3 mm) |
| Net Weight | ~ 26.8 kg (Gloss : ~ 32.8 kg) | |

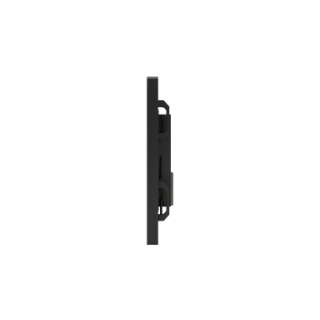

| Body Size | 1015 (H) x 603 (V) x 90 (D) mm | |
| Package Box | 114 (H) x 73 (V) x 20 (D) cm | |
| Other | Waterproof | N/A |
| Operation | Brightness, Contrast, Color, Auto Tuning, H/V Position, etc. | |
| Accessory | AC Power Cord, 1.5m, US/JP (PSE) | |
| Speaker | 10 W *2 | |

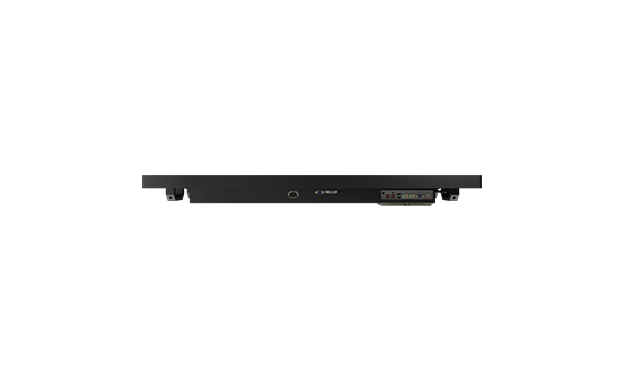

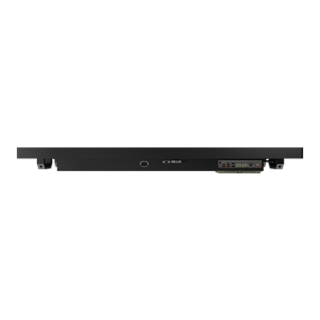

| I/O Ports | VGA*1, DVI-D*1, HDMI*1, Audio*1, AC IN | |

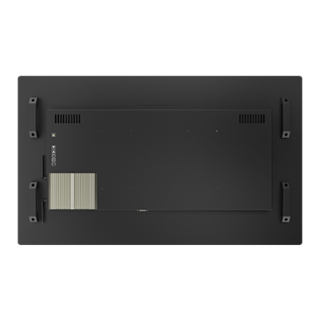

| Wall Mounting | VESA Mount (400 x 200 mm, 8-M6*6 mm) |
