型番：ADSD28NF01.0

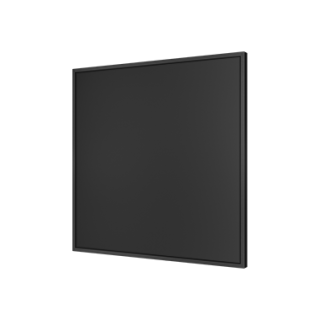

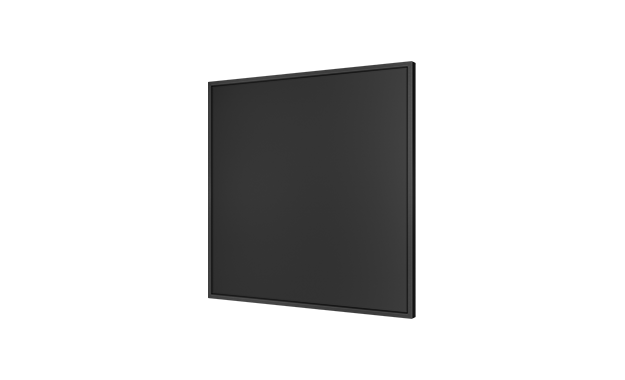

28.1” Smart Square Display
- Size：28.1 inch
- Brightness：700 nits
- Resolution：800 x 800
- Contrast：4000 : 1
- View Angle：89°/89°/89°/89° (L/R/U/D)
- Response Time：8 ms
- LED Backlight Lifetime：50,000 Hrs.
- Operating System：Android 6
- Memory：DDR3 1GB, eMMC 8GB
- Network：Ethernet RJ-45
| Panel | Model | ADSD28NF01.0 |
|---|---|---|
| Resolution | 800 x 800 | |
| Size | 28.1 inch | |
| Display Area | 504 (H) x 504 (V) mm | |
| Brightness | 700 nits | |
| Contrast | 4000 : 1 | |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |
| Response Time | 8 ms | |
| Color | 8 bit (16.7M) | |
| Aspect Ratio | 1 : 1 (Square Shape) | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Landscape / Portrait | |
| Power | DC Rating | < DC 24V / 6.67A |
| Consumption | < 90W (Standby: < 1W) | |
| Input | AC/DC Adapter 24V (DIN Type 4pin) | |
| Environment | Operating Temp | 0 ~ 45 ℃ |
| Operating Humidity | 10 ~ 90% RH | |
| Storage Temp | -20 ~ 60 ℃ | |
| Storage Humidity | 20 ~ 80% RH | |
| Dimensions | Appearance | Black powder coating |
| Net Weight | ~ 6.5 kg (Gross : ~8 kg) | |
| Body Size | 527 (H) x 527 (V) x 43 (D) mm | |
| Package Box | v | |
| Other | Operation | Brightness, Contrast, Color, Auto Tuning, H/V Position, etc. |
| Accessory | Power Cord (~1.2m) *1, AC/DC Adapter DC24V | |
| Speaker | Boxed speaker 3W/8Ω*2 | |
| I/O Ports | USB2.0*2, TF*1, HDMI*1(Optional Input), Earphone*1 | |
| Wall Mounting | VESA (200x200 mm, 4-M6*25mm) |
