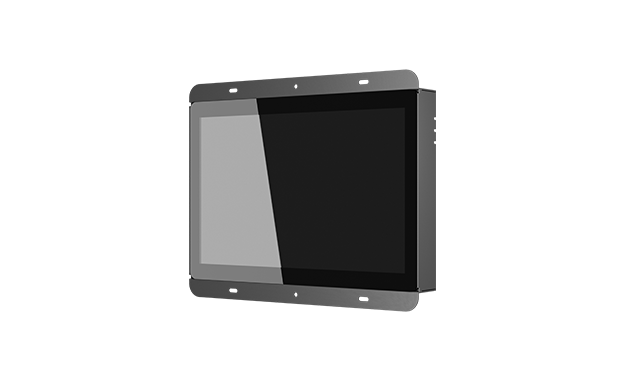

型番：ADSD10PH01.0

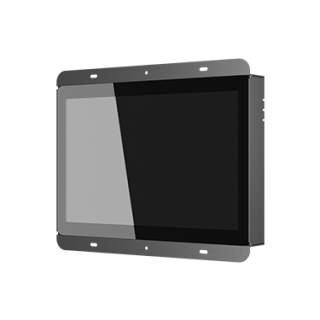

10.1” High Brightness Smart Touch Display
- Size：10.1 inch
- Operating System：Android 6.0
- Brightness：1000 nits (w/ touch:850)
- Resolution：1280 x 800
- Contrast：1300 : 1
- View Angle：85°/85°/85°/85° (L/R/U/D)
- Color：6 bit +HI FRC
- LED Backlight Lifetime：50,000 Hrs.

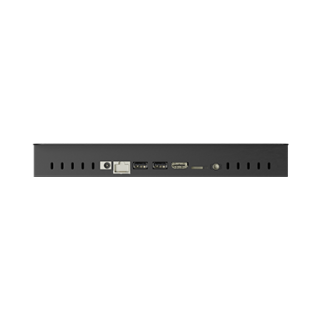

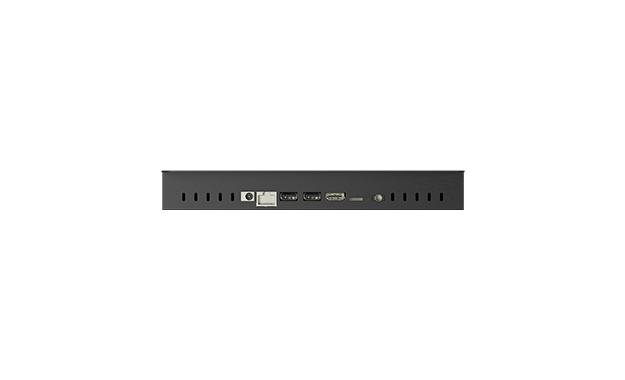

- I/O Ports：USB-A*2, HDMI, Trans Flash, Headphone, RJ45
| Panel | Model | ADSD10PH01.0 |
|---|---|---|
| Resolution | 1280 x 800 | |
| Size | 10.1 inch | |
| Display Area | 216.96 (H) x 135.6 (V) mm | |
| Brightness | 1000 nits (w/ touch:850) | |
| Contrast | 1300 : 1 | |
| Viewing Angle | 85°/85°/85°/85° (L/R/U/D) | |
| Response Time | 25 ms | |
| Color | 6 bit +HI FRC | |
| Aspect Ratio | 16 : 10 | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Landscape | |
| Touch Panel | Touch Type | Projected Capacitive Touch |
| Structure | N/A | |
| Controller IC | N/A | |
| Interface | USB | |
| Multi-touch | 10 Points | |
| Transmission Rate | ≥85% | |
| Surface Hardness | 7 H | |
| System | Operating System | Android 6.0 |
| CPU | N/A | |
| RAM | DDR3 1GB, eMMC 8GB | |
| ROM | N/A | |
| Network | IEEE 802. b/g/n, RJ45 LAN x 1 | |
| Power | Consumption | Approx. < 15W (TBD) |
| Input | DC 12V, 5A | |
| Environment | Operating Temp | -10 ~ 50 ℃ |
| Operating Humidity | N/A | |
| Storage Temp | -20 ~ 60 ℃ | |
| Storage Humidity | N/A | |
| Dimensions | Panel Cover | PCAP Touch |
| Net Weight | 1.4 kg | |
| Body Size | 245 (H) x 198 (V) x 32 (D) mm | |
| Package Box | N/A | |
| Other | Waterproof | N/A |
| Operation | Light sensor, Metal coating | |
| Accessory | N/A | |
| Speaker | N/A | |
| I/O Ports | USB-A*2, HDMI, Trans Flash, Headphone, RJ45 | |
| Wall Mounting | N/A |
