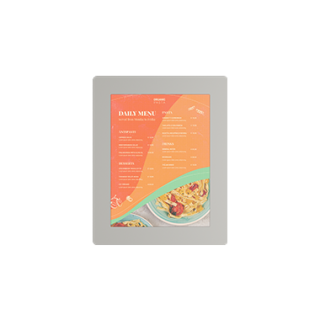

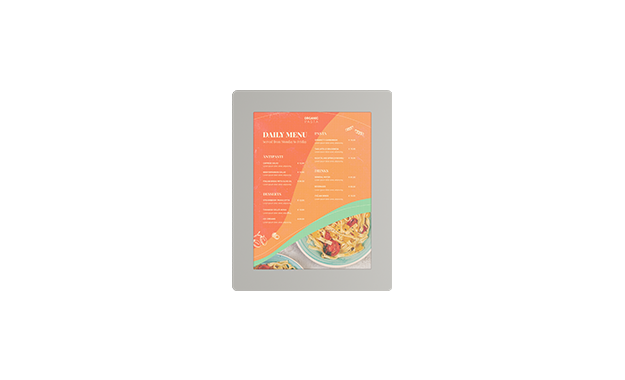

Model：WYED133C

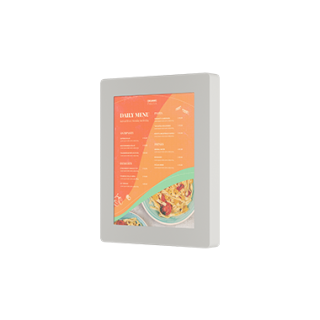

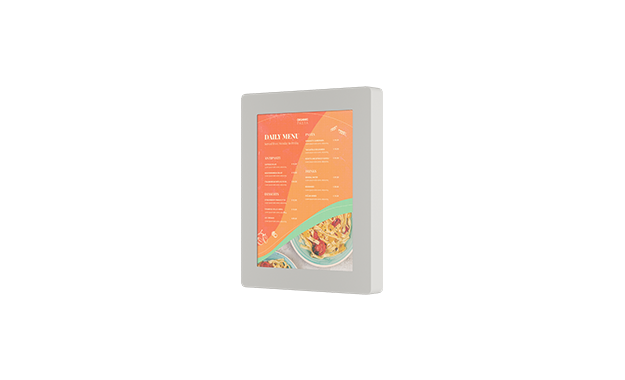

13.3” e-Paper Color Signage
- Size：13.3 inch
- Operating System：Linux
- Brightness：60 cd/m2
- Resolution：1600 x 1200
- Aspect Ratio：4 : 3
- Color：4096

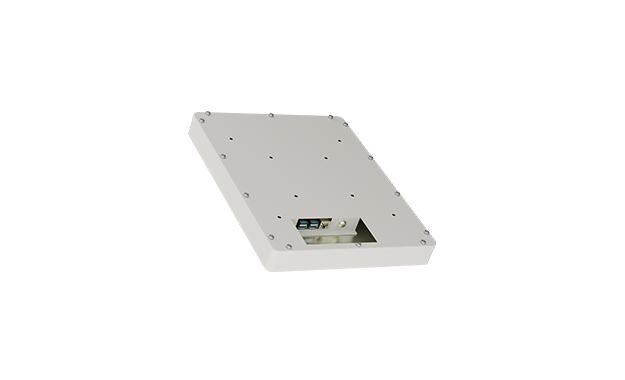

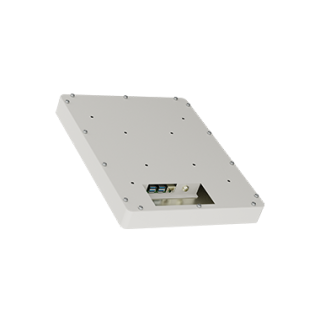

- I/O Ports：USB Type A, RJ45 (LAN)
| Display | Model | WYED133C |
|---|---|---|
| Resolution | 1600 x 1200 | |
| Size | 13.3 inch | |
| Display Area | 270.4 (H) x 202.8 (V) mm | |
| Brightness | 60 cd/m2 | |
| Color | 4096 | |
| Aspect Ratio | 4 : 3 | |
| Number of Gray | 16 Gray Levels | |
| Protection | Front-With Cover Glass 3mm, Front-IP65 | |
| Display Type | Reflective | |
| System | Operating System | Linux |
| CPU | ARM (1.5GHz Quad Core Cortex A72) | |
| Flash/Storage | 2GB DDR4/16GB micro-SD | |
| Network | Wi-Fi, 10M/100M | |
| Power | Power Supply | 5V/30W Adapter |
| Battery | Li-Ion Battery (Option) | |
| Environment | Operating Temp | -15° ~ 65°C |
| Operating Humidity | 0% ~ 80% | |
| Storage Temp | -25° ~ 70°C | |
| Storage Humidity | 0% ~ 80% | |
| Dimensions | Net Weight | 350 (W) x 280 (H) x 39 ±1 (D) mm ref. |
| Body Size | 4.5 kg ref. | |
| Other | Operation | Li-Ion Battery Pack 99W, 50W Solar Panel |
| I/O Ports | USB Type A, RJ45 (LAN) | |

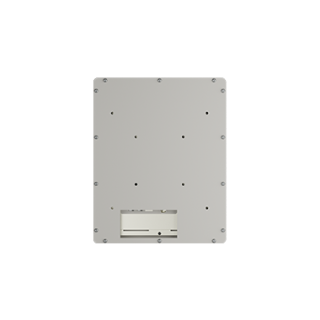

| Wall Mounting | VESA 200 x 200 mm |
