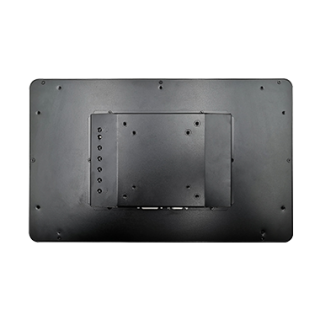

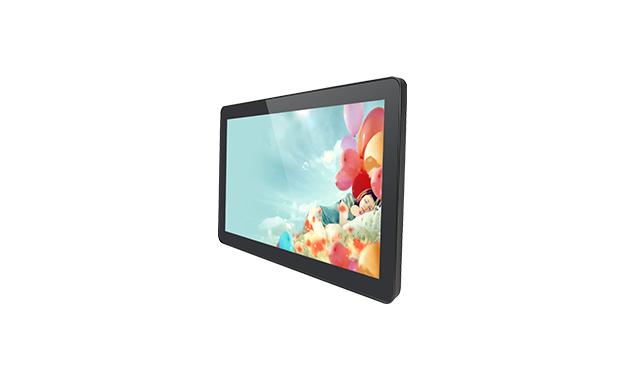

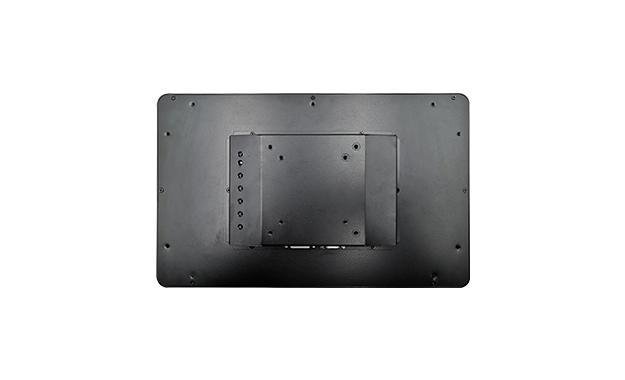

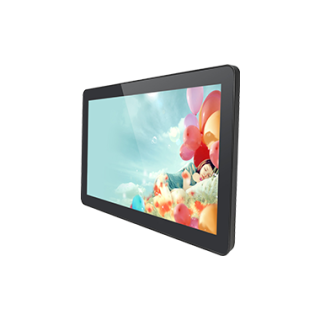

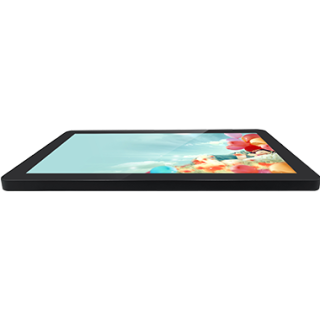

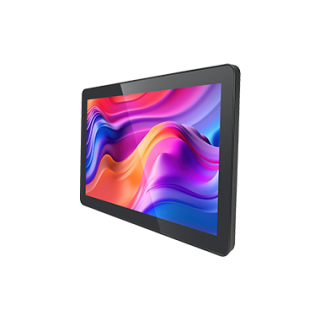

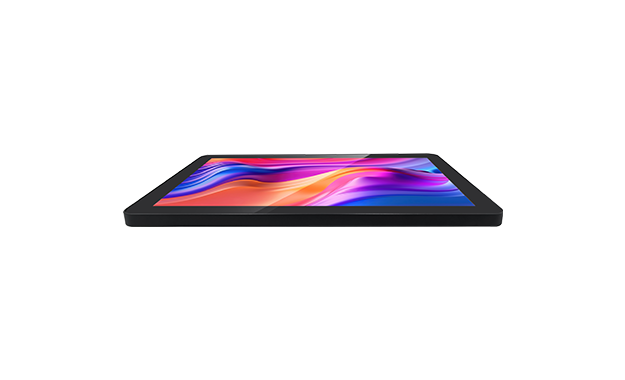

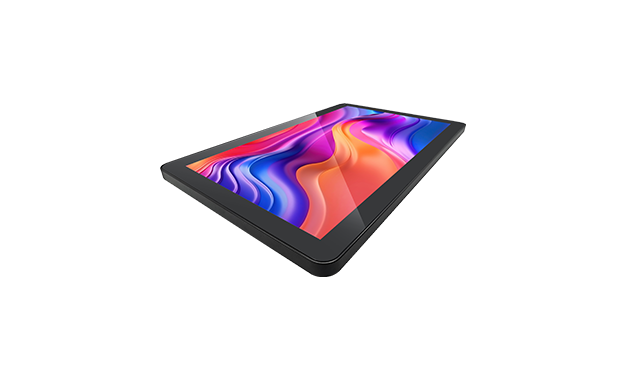

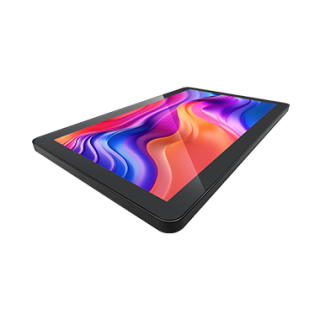

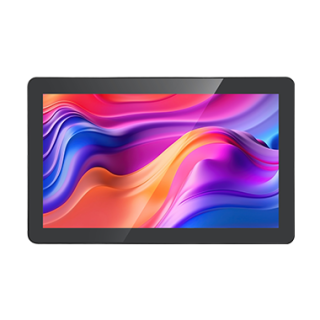

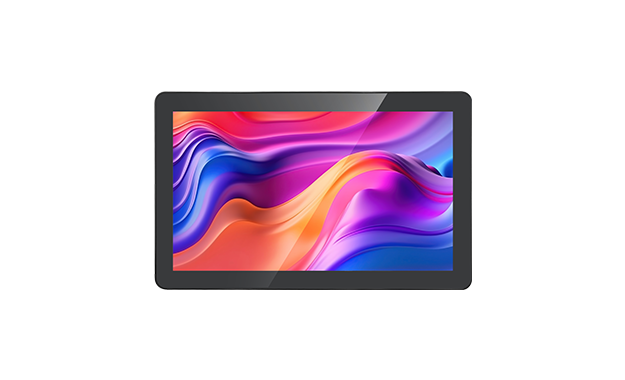

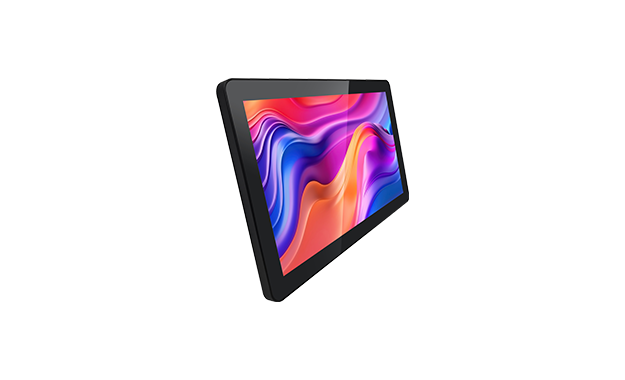

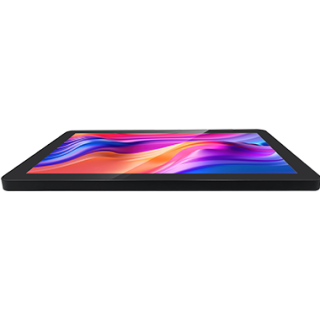

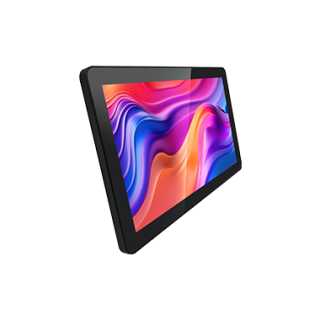

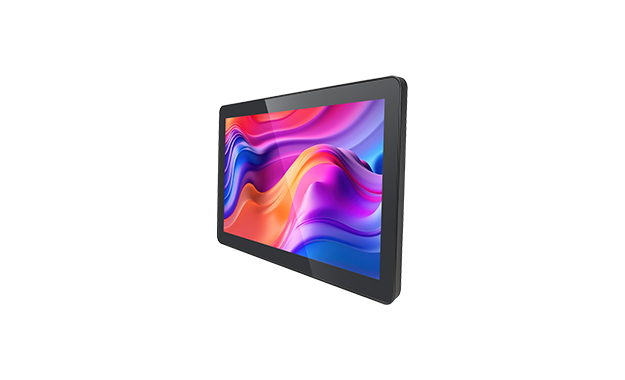

Model：AMTD15PN01.0

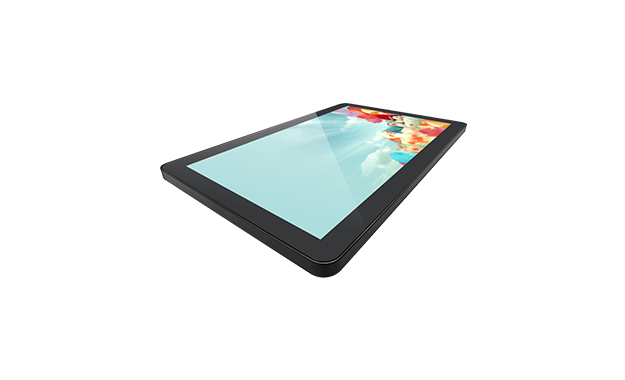

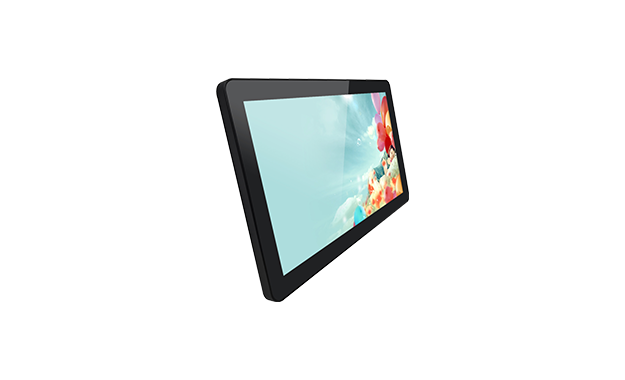

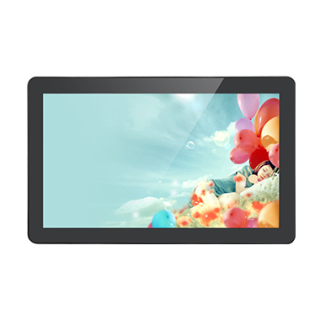

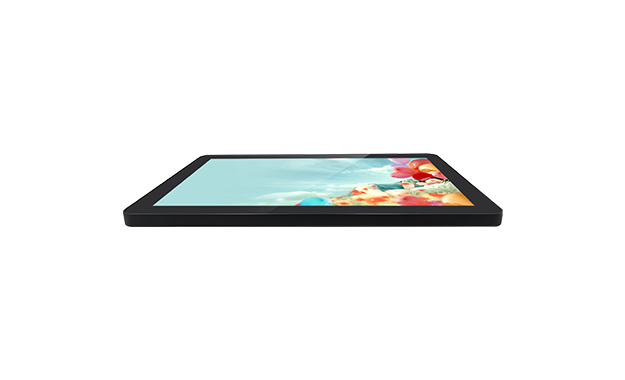

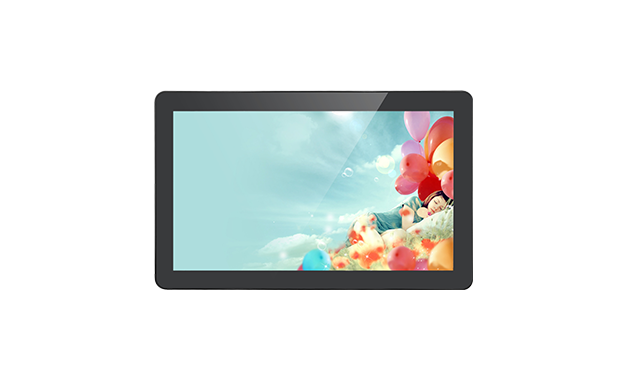

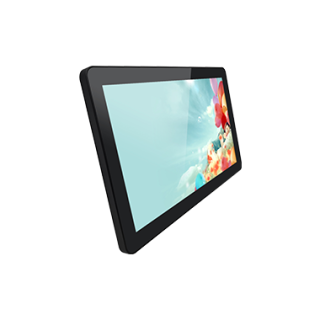

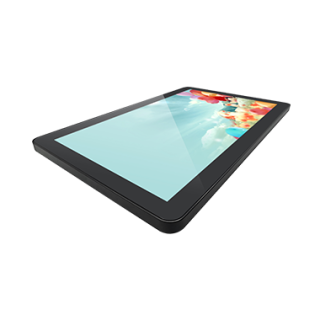

15.6” PCAP Touch Display
- Size：15.6 inch
- Touch Type：PCAP (10 Points)
- Brightness：500 nits
- Resolution：1920 x 1080
- Contrast：1000 : 1
- Viewing Angle：178° (H) / 178° (V)
- Response Time：25 ms
- Color：16.2 M
- LED Backlight Lifetime：50,000 Hrs.

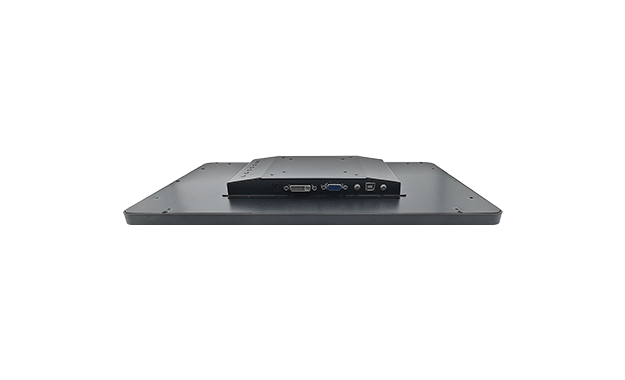

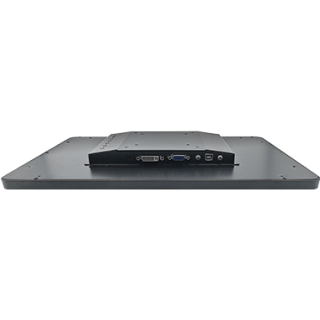

- I/O Ports：VGA, DVI-D, USB
| Panel | Model | AMTD15PN01.0 |
|---|---|---|
| Resolution | 1920 x 1080 | |
| Size | 15.6 inch | |
| Display Area | 344.16 (H) x 193.59 (V) mm | |
| Brightness | 500 nits | |
| Contrast | 1000 : 1 | |
| Viewing Angle | 178° (H) / 178° (V) | |
| Response Time | 25 ms (Typ.Tr+Tf) | |
| Color | 16.2M | |
| LED Backlight Lifetime | 50,000 hrs. | |
| Display Orientation | Landscape/Portrait | |
| Touch Panel | Touch Type | PCAP |
| Structure | N/A | |
| Controller IC | N/A | |
| Interface | USB | |
| Multi-touch | 10 Points (PCAP Touch) | |
| Transmission Rate | N/A | |
| Bonding | N/A | |
| Surface Hardness | N/A | |
| Power | Consumption | < 25W |
| Input | DC 12V | |
| Environment | Operating Temp | -10 ~ 60 ℃ (Non-Condensation) |
| Operating Humidity | 5 ~ 90% RH | |
| Storage Temp | -20 ~ 70 ℃ (Non-Condensation) | |
| Storage Humidity | 5 ~ 90% RH | |
| Dimensions | Body Size | 241.1 (H) x 390.8 (V) x 32 (T) mm |
| Package Size / Carton | N/A | |
| Net Weight | N/A | |
| Gross Weight | N/A | |
| Other | Operation | Normal operation hours |
| Accessory | AC-DC Adapter | |
| Speaker | Optional | |
| I/O Ports | VGA, DVI-D, USB | |
| Wall Mounting | N/A |
