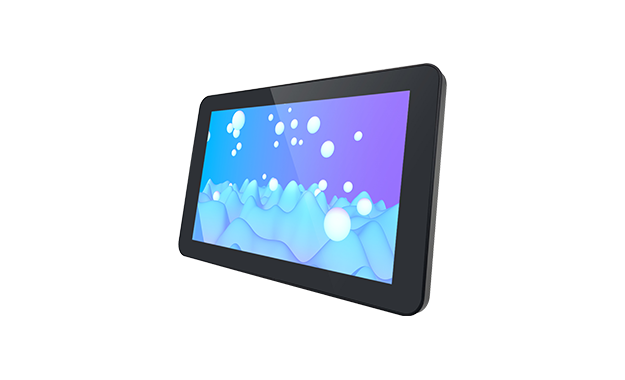

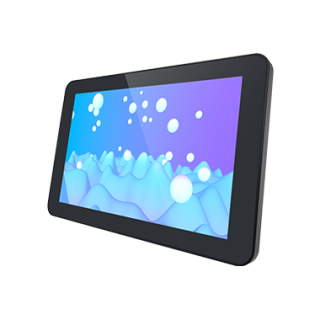

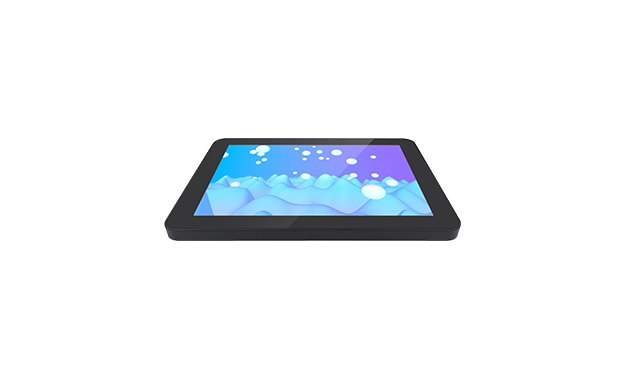

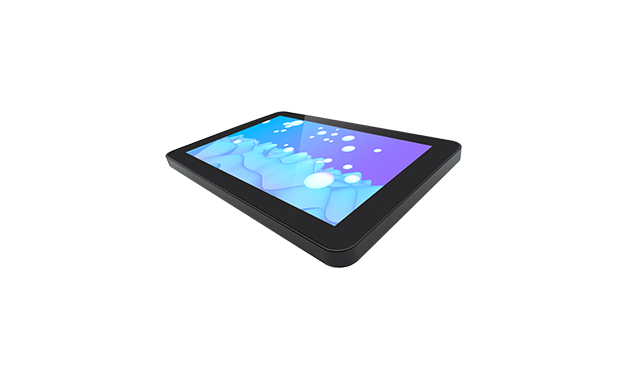

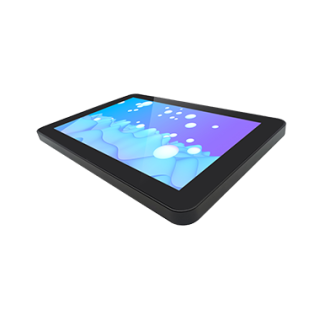

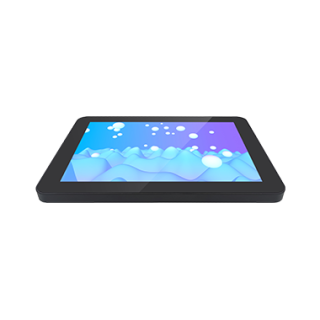

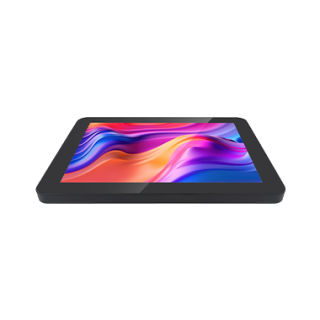

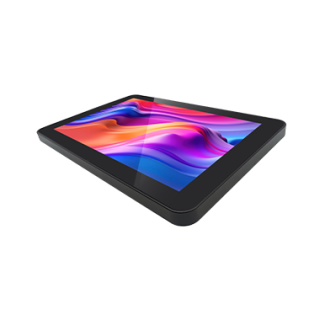

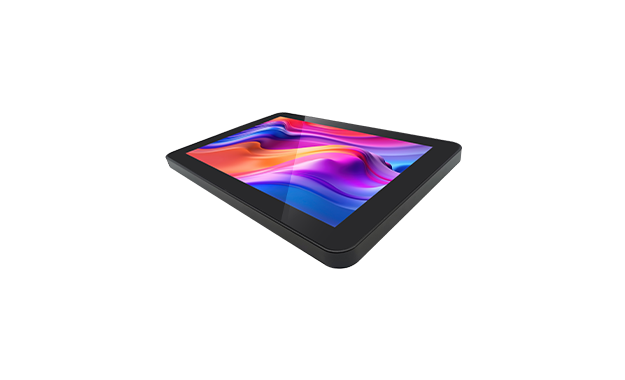

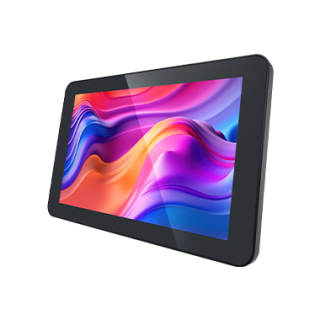

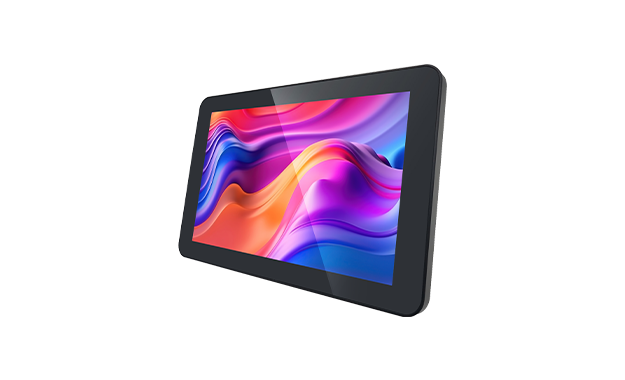

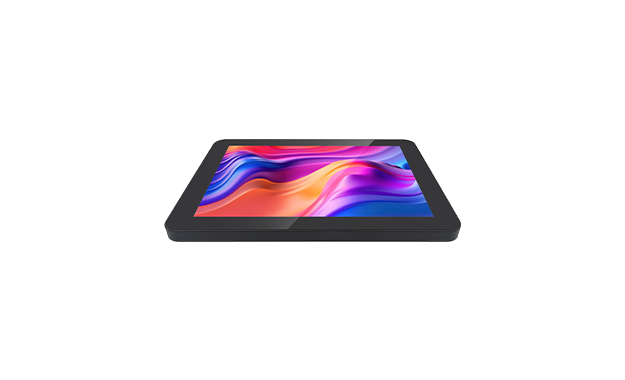

Model：AMTD10PN01.0
10.1” PCAP Touch Display
- Size：10.1 inch
- Touch Type：PCAP (10 Points)
- Brightness：400 nits
- Resolution：1280 x 800
- Contrast：1300 : 1
- Viewing Angle：170° (H) / 170° (V)
- Response Time：25 ms
- Color：262K
- LED Backlight Lifetime：25,000 hrs.

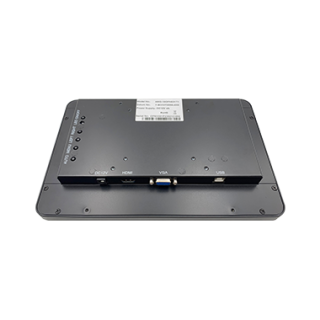

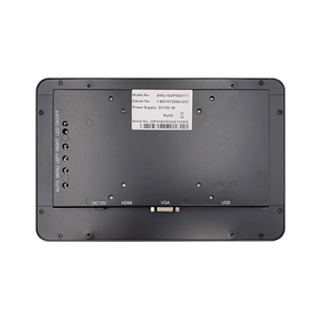

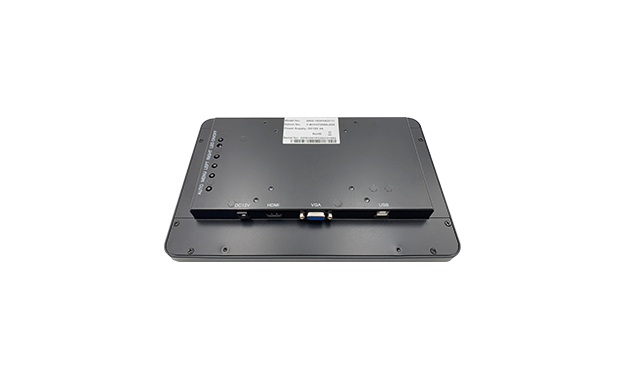

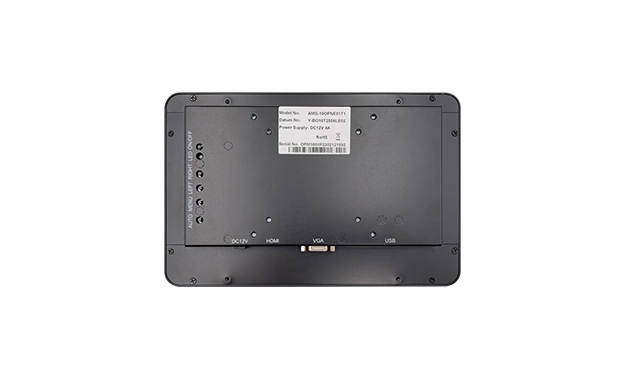

- I/O Ports：HDMI, VGA, USB
| Panel | Model | AMTD10PN01.0 |
|---|---|---|
| Resolution | 1280 x 800 | |
| Size | 10.1 inch | |
| Display Area | 216.96 (H) x 135.6 (V) mm | |
| Brightness | 400 nits | |
| Contrast | 1300 : 1 | |
| Viewing Angle | 170° (H) / 170° (V) | |
| Response Time | 25 ms (Typ.Tr+Tf) | |
| Color | 262 K | |
| LED Backlight Lifetime | 25,000 hrs. | |
| Display Orientation | Landscape/Portrait | |
| Touch Panel | Touch Type | PCAP |
| Structure | N/A | |
| Controller IC | N/A | |
| Interface | USB | |
| Multi-touch | 10 Points (PCAP Touch) | |
| Transmission Rate | N/A | |
| Bonding | N/A | |
| Surface Hardness | N/A | |
| Power | Consumption | < 20W |
| Input | DC 12V | |
| Environment | Operating Temp | -20 ~ 60 ℃ (Non-Condensation) |
| Operating Humidity | 5 ~ 90% RH | |
| Storage Temp | -30 ~ 70 ℃ (Non-Condensation) | |
| Storage Humidity | 5 ~ 90% RH | |
| Dimensions | Body Size | 174.2 (H) x 261 (V) x 29.9 (T) mm |
| Package Size / Carton | N/A | |
| Net Weight | N/A | |
| Gross Weight | N/A | |
| Other | Operation | Normal operation hours |
| Accessory | AC-DC adapter | |
| Speaker | Optional | |
| I/O Ports | HDMI, VGA, USB | |
| Wall Mounting | VESA mount |
