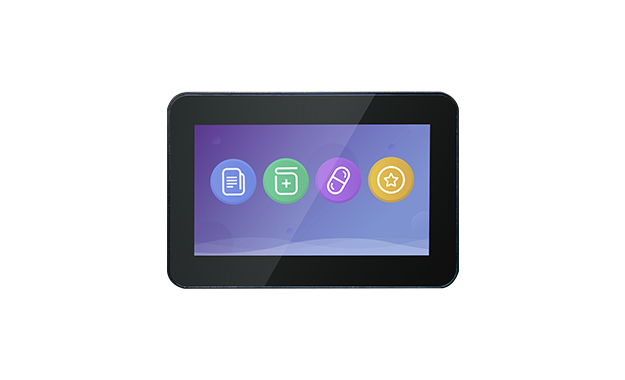

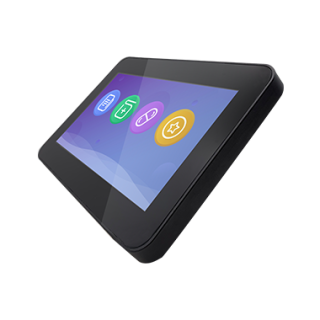

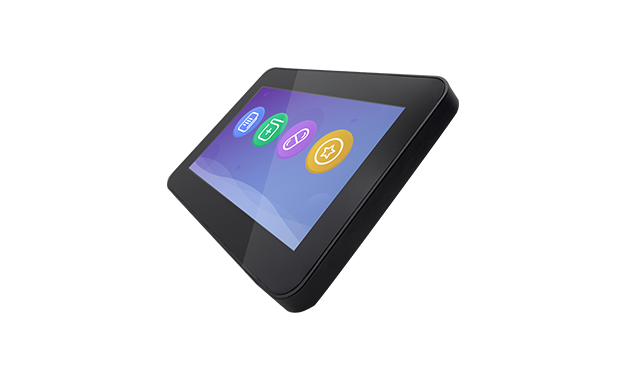

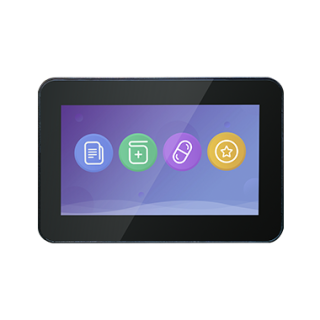

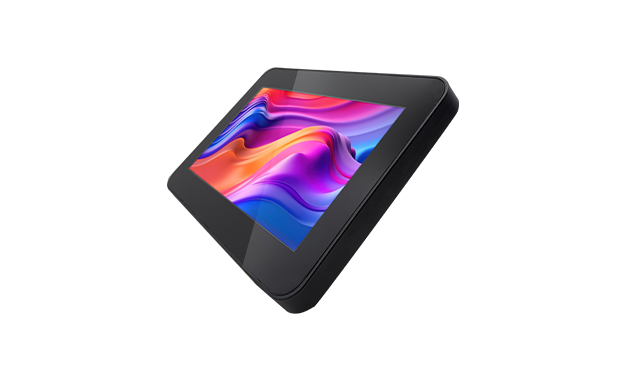

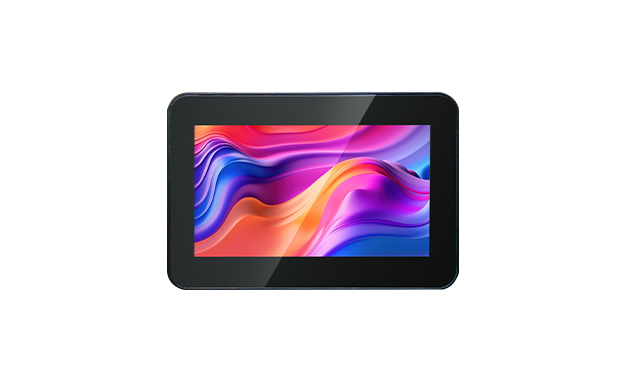

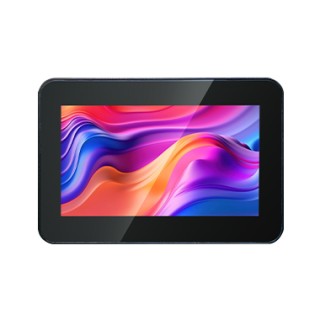

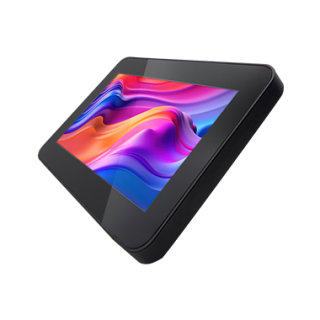

Model：AMTD07PN01.0
7” PCAP Touch Display
- Size：7 inch
- Touch Type：PCAP (10 Points)
- Brightness：350 nits
- Resolution：1024 x 600
- Contrast：700 : 1
- Viewing Angle：150° (H) / 145° (V)
- Response Time：16 ms
- Color：16.7 M
- LED Backlight Lifetime：15,000 hrs.

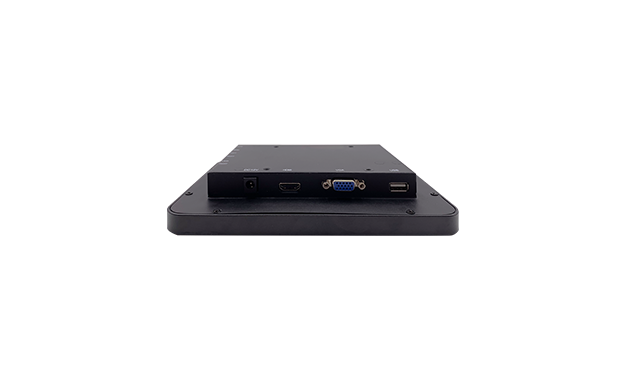

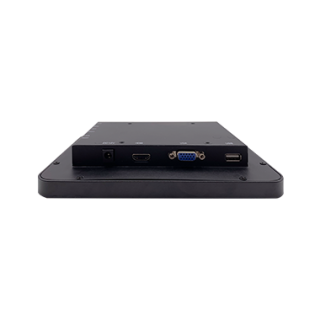

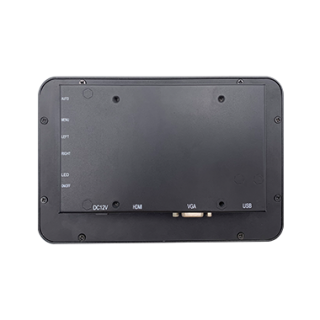

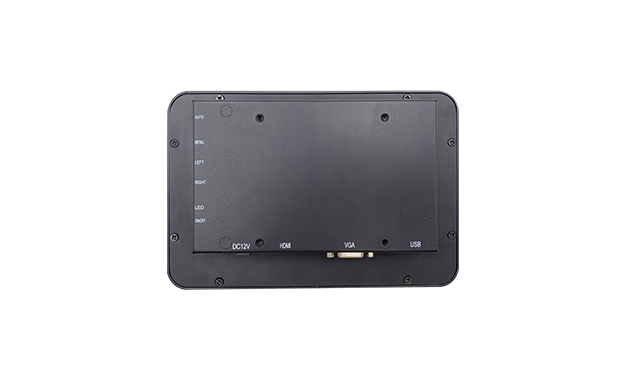

- I/O Ports：HDMI, VGA, USB
| Panel | Model | AMTD07PN01.0 |
|---|---|---|
| Resolution | 1024 x 600 | |
| Size | 7 inch | |
| Display Area | 153.6 (H) x 90 (V) mm | |
| Brightness | 350 nits | |
| Contrast | 700 : 1 | |
| Viewing Angle | 150° (H) / 145° (V) | |
| Response Time | 16 ms (Typ.Tr+Tf) | |
| Color | 16.7 M | |
| LED Backlight Lifetime | 15,000 hrs. | |
| Display Orientation | Landscap/Portrait | |
| Touch Panel | Touch Type | PCAP |
| Structure | N/A | |
| Controller IC | N/A | |
| Interface | USB | |
| Multi-touch | 10 Points (PCAP Touch) | |
| Transmission Rate | N/A | |
| Bonding | N/A | |
| Surface Hardness | N/A | |
| Power | Consumption | < 20W |
| Input | DC 12V | |
| Environment | Operating Temp | -20 ~ 60 ℃ (Non-Condensation) |
| Operating Humidity | 5 ~ 90% RH | |
| Storage Temp | -30 ~ 70 ℃ (Non-Condensation) | |
| Storage Humidity | 5 ~ 90% RH | |
| Dimensions | Body Size | 128.8 (H) x 189.9 (V) x 32 (T) mm |
| Package Size / Carton | N/A | |
| Net Weight | N/A | |
| Gross Weight | N/A | |
| Other | Operation | Normal operation hours |
| Accessory | AC-DC Adapter | |
| Speaker | Optional | |
| I/O Ports | HDMI, VGA, USB | |
| Wall Mounting | VESA mount |
