Model：ADEP28NF01.0

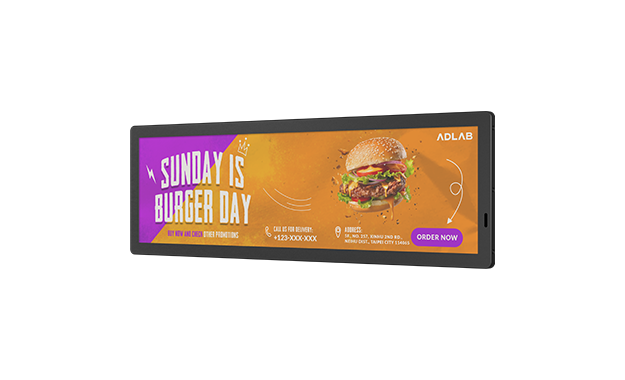

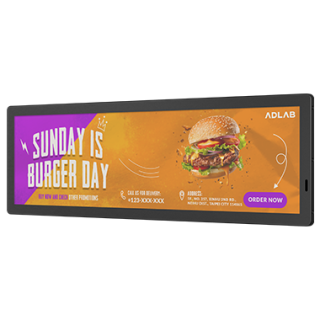

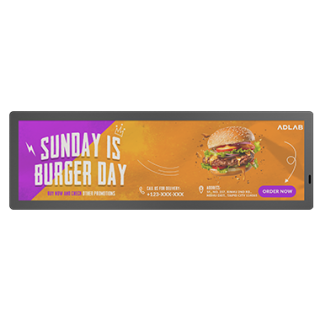

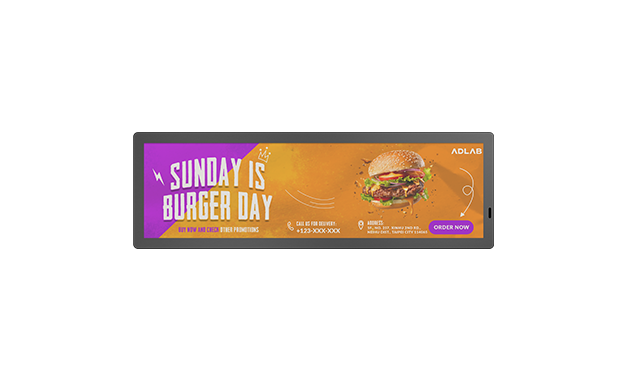

28” Bar Type e-Paper Display
- Size：28 inch
- Operating System：Android 11
- Brightness：None
- Resolution：3840 x 1080
- Aspect Ratio：32 : 9
- Color：> 60K

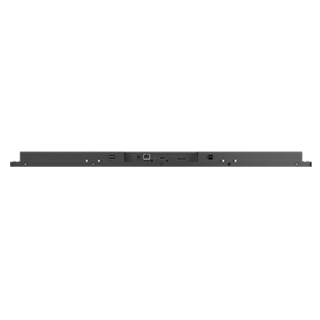

- I/O Ports：USB Type A, Micro USB, RJ45 (LAN), Earphone Jack, SD Card Slot
| Display | Model | ADEP28NF01.0 |
|---|---|---|
| Resolution | 3840 x 1080 | |
| Size | 28 inch | |
| Display Area | 683.52 (H) x 192.24 (V) mm | |
| Brightness | None | |
| Color | > 60K | |
| Aspect Ratio | 32 : 9 | |
| Number of Gray | N/A | |
| Protection | N/A | |
| Display Type | Reflective | |
| System | Operating System | Android 11 |
| CPU | ARM (1.3GHz Quad Core Cortex A35) | |
| Flash/Storage | 2GB LPDDR3/16GB eMMC | |
| Network | Wi-Fi 2.4G/5G + BT5.1, 10M/100M | |
| Power | Power Supply | 20V/45W Adapter |
| Battery | 18650 Li-Battery x 4 (Prepare by customer) | |
| Environment | Operating Temp | 15° ~ 35°C |
| Operating Humidity | N/A | |
| Storage Temp | -25° ~ 50°C | |
| Storage Humidity | N/A | |
| Dimensions | Net Weight | 2.2 kg |

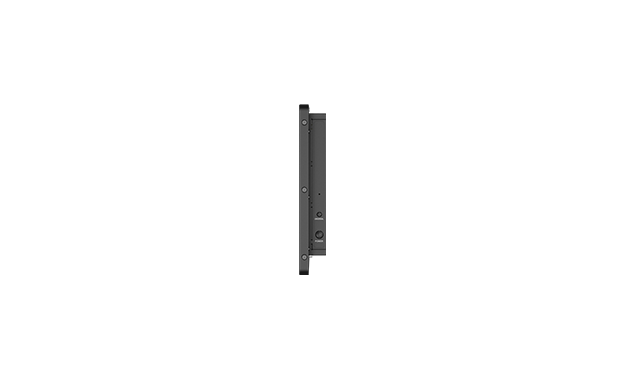

| Body Size | 727.52 (W) x 236.24 (H) x 41.5 (D) mm | |
| Other | Operation | N/A |

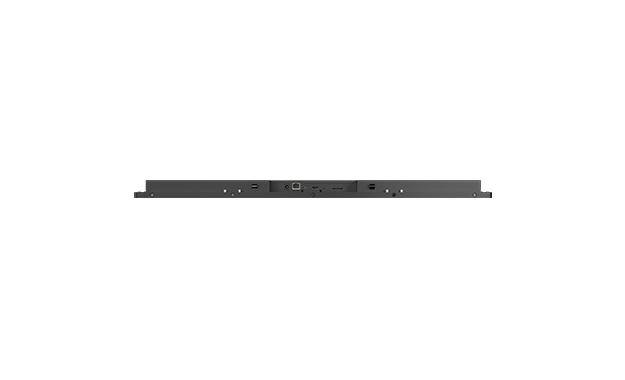

| I/O Ports | USB Type A, Micro USB, RJ45 (LAN), Earphone Jack, SD Card Slot | |

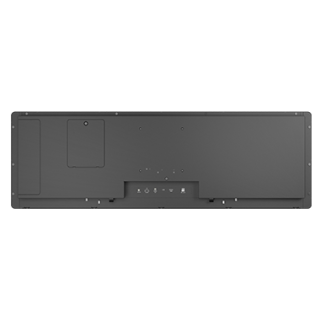

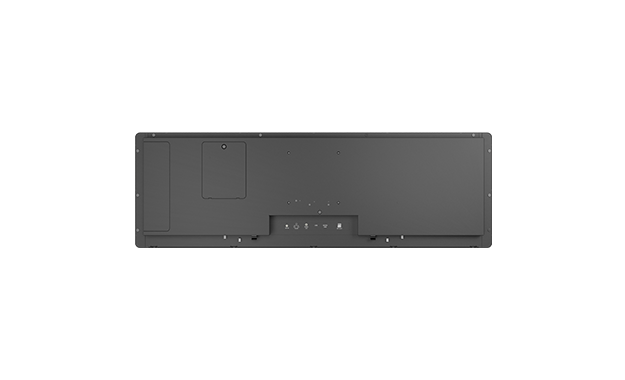

| Wall Mounting | VESA 100 x 100 mm |
