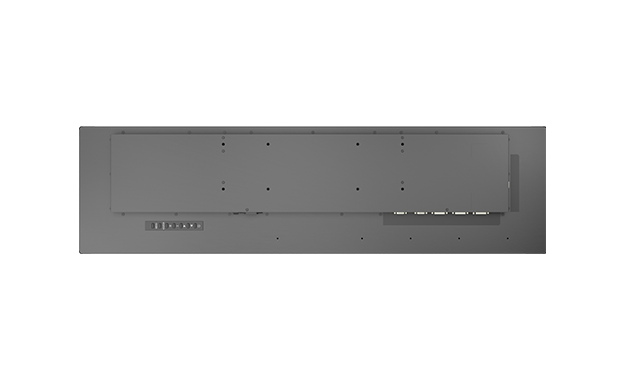

Model：ADDP42NF01.0

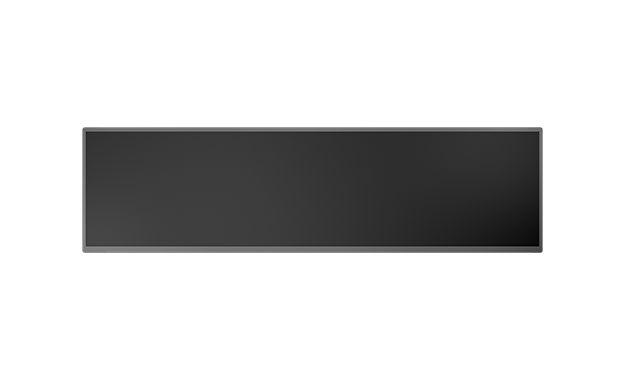

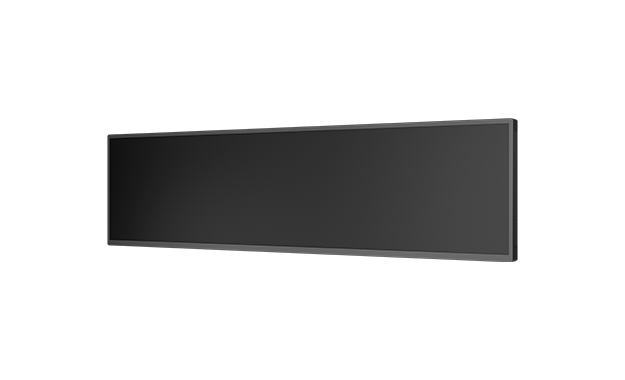

42” Stretched Display
- Size：42 inch
- Brightness：700 nits
- Resolution：1920 x 480
- Contrast：4000 : 1
- View Angle：89°/89°/89°/89° (L/R/U/D)
- Response Time：8 ms
- Color：10 bit (8bit+FRC), 1.07B
- LED Backlight Lifetime：50,000 Hrs.
- I/O Ports：VGA*1, DVI*1, HDMI*1, Audio*1, RS232*1, AC IN
- Usage(hrs/days)：24/7
| Panel | Model | ADDP42NF01.0 |
|---|---|---|
| Resolution | 1920 x 480 | |
| Size | 42 inch | |
| Display Area | 1039.68 (W) x 259.92 (H) mm | |
| Brightness | 700 nits | |
| Contrast | 4000 : 1 | |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |
| Response Time | 8 ms | |
| Color | 10 bit (8bit+FRC), 1.07B | |
| Aspect Ratio | 16 : 4 | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Landscape/Portrait | |
| Power | Consumption | ~ 70 W |
| Input | AC100-240V, 50-60Hz | |
| Standby | ≦ 0.5 W | |
| Environment | Operating Temp | 0 ~ 50 ℃ |
| Operating Humidity | 10 ~ 80% RH | |
| Storage Temp | -20 ~ 60 ℃ | |
| Storage Humidity | 10 ~ 90% RH | |
| Dimensions | Appearance | Black |
| Net Weight | ~9.5 kg (Gross : ~13 kg) | |
| Body Size | 1059.9 (W) x 288.9 (H) x 64.7(D) mm | |
| Package Box | 1174 (W) x 416 (H) x 161 (D) mm | |
| Other | Operation | OSD Menu / Remote control |
| Accessory | Power Cord (UL/PSE/BSMI) 1.8M | |
| Speaker | N/A | |

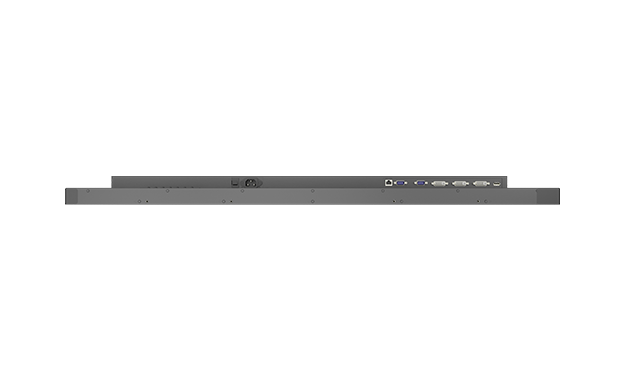

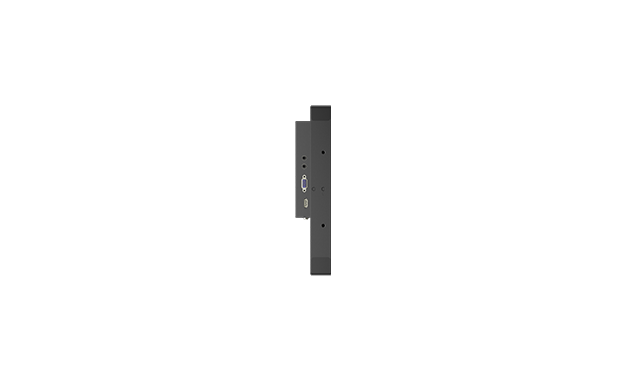

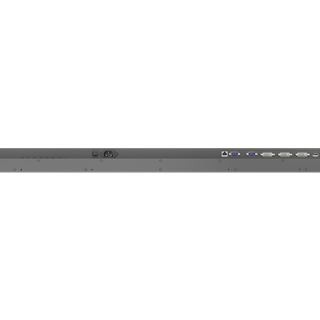

| I/O Ports | VGA*1, DVI-D*1, HDMI*2, Audio*1, RS232*1, AC IN | |

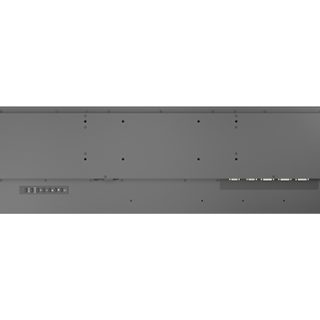

| Wall Mounting | VESA (400 x 100 / 200 x 100 mm, 4-M6 ) |
