Model：ADDP22NF01.0

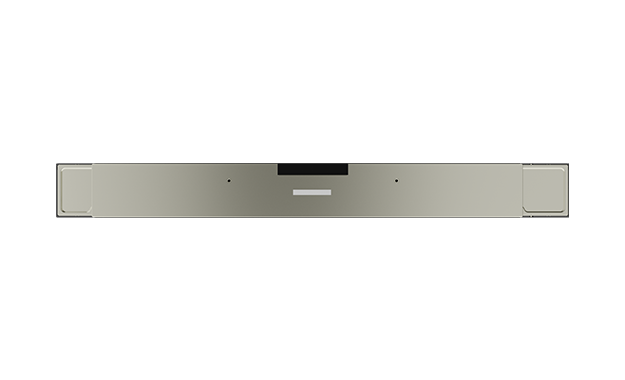

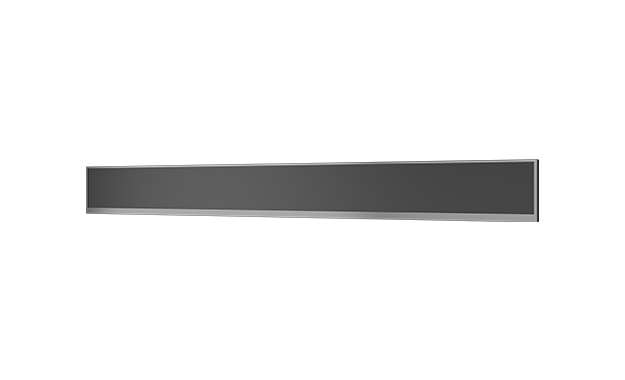

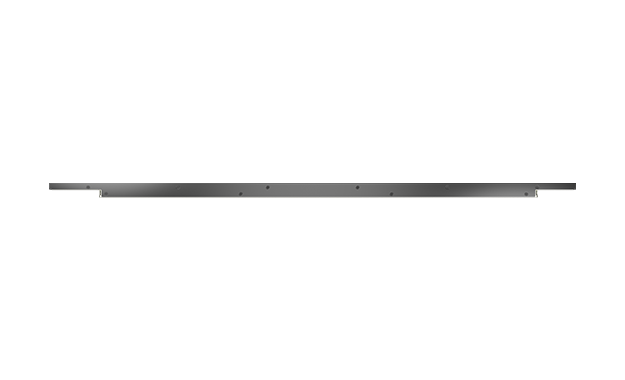

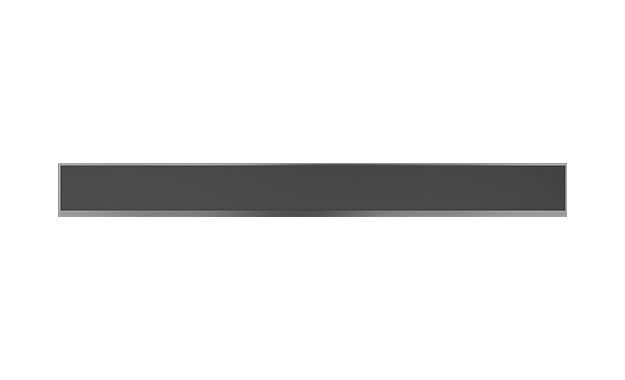

22.9” Stretched Display
- Size：22.9 inch
- Brightness：700 nits
- Resolution：1920 x 165
- Contrast：1000 : 1
- View Angle：89°/89°/89°/89° (L/R/U/D)
- Response Time：25 ms
- Color：16.7 M
- LED Backlight Lifetime：50,000 Hrs.
- I/O Ports：micro-HDMI*1, micro-USB*1, USB-C (DC12V)
- Usage(hrs/days)：24/7
| Panel | Model | ADDP22NF01.0 |
|---|---|---|
| Resolution | 1920 x 165 | |
| Size | 22.9 inch | |
| Display Area | 578.88 (H) x 49.7475 (V) mm | |
| Brightness | 700 nits | |
| Contrast | 1000 : 1 | |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |
| Response Time | 25 ms | |
| Color | 16.7 M | |
| Aspect Ratio | 12 : 1 | |
| LED Backlight Lifetime | 50,000 Hrs. | |
| Display Orientation | Landscape | |
| Power | Consumption | 15 W (typ.) |
| Input | AC/DC Adapter (Type-C, 12V), AC100-240V, 50-60Hz | |
| Standby | ≦ 0.5 W | |
| Environment | Operating Temp | 0 ~ 50 ℃ |
| Operating Humidity | 5 ~ 80% RH | |
| Storage Temp | -20 ~ 60 ℃ | |
| Storage Humidity | 5 ~ 80% RH | |
| Dimensions | Appearance | Black |
| Net Weight | ~ 0.69 kg (Gross : ~10Kg, 6 set/box) | |

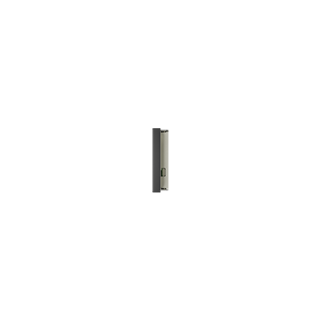

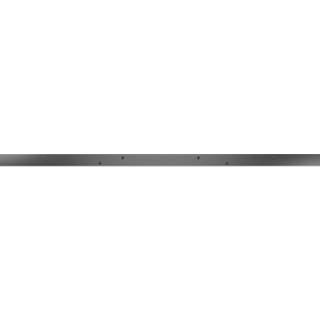

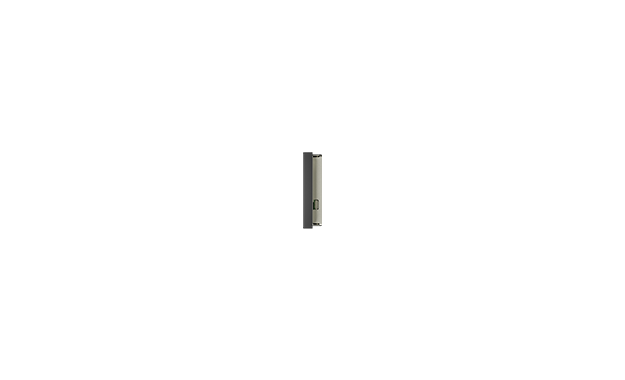

| Body Size | 584.08 (W) x 62.05 (H) x 16.5 (D) mm | |
| Package Box | 73 (W) cm x 31 (H) cm x 28.5(D) cm | |
| Other | Operation | N/A |
| Accessory | AC/DC Adapter (Type-C, 12V) | |
| Speaker | N/A | |

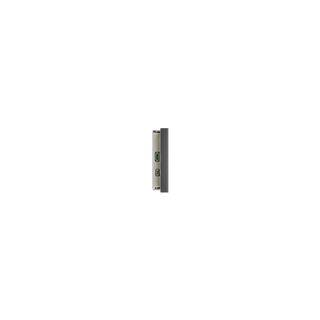

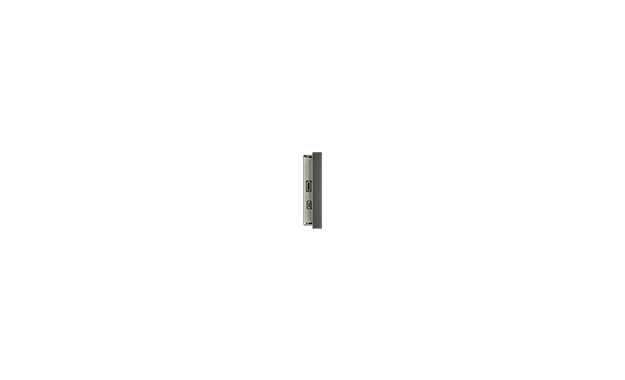

| I/O Ports | DC Power Input, Micro HDMI*1, Micro USB *1 (Multimedia) | |
| Wall Mounting | 2-M3*4mm / Span : 190mm |
